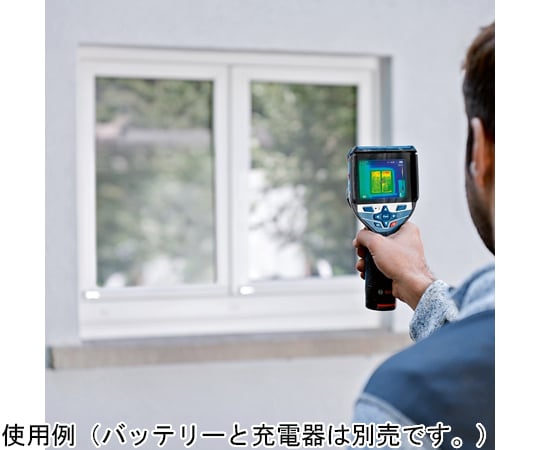

BOSCH 紅外線熱像儀 GTC600CN

Features

• Easy operation for high and low temperature detection.
• The highest thermal resolution in its class makes it easy to identify abnormal temperature areas.
• The Connect function makes it easy to create reports.
• You can record audio to images stored on the instrument and record audio memos.
• Large, easy-to-read 3.5 inch color LCD screen.
• Built-in Wi-Fi function.
• Emissivity can be manually entered or selected from the Emissivity list set in the unit.
• Four measurement modes are adopted.
• Thermal and real images can be displayed on top of each other.
• Different colors depict the temperature distribution in the area captured by the infrared sensor (thermal image).
• Temperature differences can be measured without contacting the area or object to be measured, and defects and abnormal locations can be visualized by temperature differences.
• Insulation failure, thermal insulation diagnosis (e.g., location of thermal bridge).
• Check floor and wall heating and hot water pipes (such as underfloor heating).
• Check electrical equipment (fuses, terminals, etc.).
• Detection of breakage of machine parts (overheating due to breakage of ball bearings, etc.).
• Battery and Charger are sold separately.
• Can not be used with dry batteries.
• Body
• carrying bag
• USB Cable Type-C Type-A

Specification

• Thermal Resolution: 256 x 192 pixels
• Image resolution: 320×240
• Measuring viewing angle: 45 x 35°
• Temperature Resolution: 0.05°C
• Measurable Temperature Range: -20 to +600°C
• Measurable distance: 0.3 m
• Accuracy of measurement (At an ambient temperature of 20~30°C, an emissivity of ε>0.999, a measuring distance of 0.3 m, and an operating time of 5 minutes or more): ±4°C for surface temperature -20 to +10°C, ±2°C for +10 to +100°C, ±2%%%% for >+100°C
• Emissivity: 0.01~1
• Spatial Resolution: 3 mrad
• Chargeable Temperature Range: 0 °C to +35 °C
• Operating Temperature Range: -10 to +45°C
• Storage temperature range (with battery): -20+50°C
• Storage temperature range (without battery): -20 °C to +70°C
• Power Supply: Professional 10.8 V Rechargeable Battery (sold separately)
• Number of images saved in internal memory: Approximately 600
• Dust-Proof/Waterproof Structure: IP54 (Excluding Battery Mounting Part)
• Body Dimensions: 231 x 115 x 102 mm
• Weight: 0.61~0.82 kg (including battery) Depends on battery capacity
• Continuous Use Time: Approx. 8 hours (2Ah)
