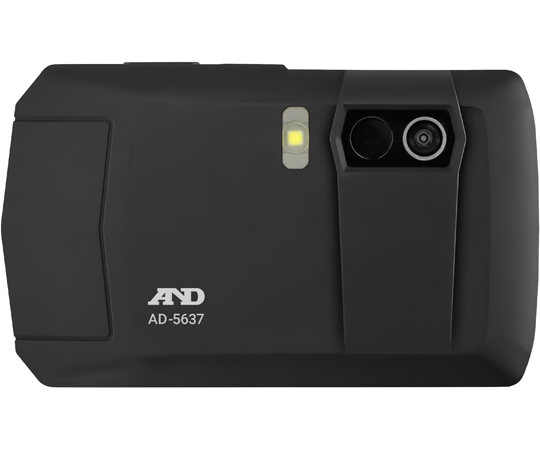

A&D 精巧型熱像儀 附一般校正 AD5637-00A00

Features

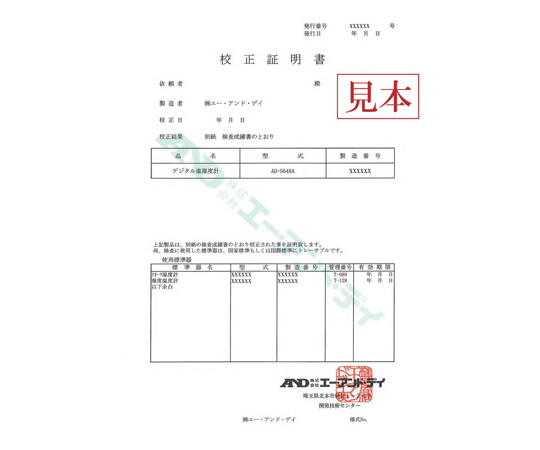

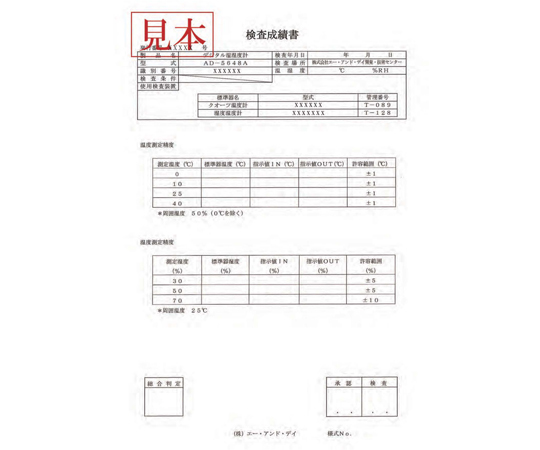

• It comes with a general calibration certificate.
• Visualize temperature distribution with thermal images and record temperature data.
• You can increase the thermal image resolution from 96 x 96 pixels to 240 x 240 pixels (Super IR).
• It can be connected to smartphone application "THG Start" through Wi-Fi connection.
• You can send images and movies to your PC via USB connection, and use the free software "Editor" to analyze images, edit, and create reports.

Specification

• Thermal image resolution: 96 x 96 pixels, 240 x 240 pixels with Super IR
• Dustproof and Waterproof Performance: IP54
• Display modes: Thermal, Fusion, Picture in Picture (PIP), Visible, Harmonic
• Frame rate: 25 Hz
• Measurement viewing angle: 50 degrees x 50 degrees
• Display: 3.5 "Color Touch Panel LCD
• Visible camera resolution: 640 x 480 pixels
• Memory: 4GB internal flash memory (2.33 GB available)
• Image: (Format) JPEG/(Storage Capacity) approx. 16,000 images/(Text memo) 255 characters
• Video: < Format >MP4/< Storage Capacity > Approx. 20 hours (if recording time is 3 minutes or longer)
• Alarm operation: Upper limit alarm -20~350°C (can be set in increments of 0.1°C), LED light flashing
• Power: Built-in lithium-ion battery
• Accessories: Simple instruction manual, USB cable, strap, carrying case, inspection certificate, general calibration certificate
• *The built-in lithium ion battery cannot be replaced.
• *Use the supplied USB cable (TypeA to TypeC) for charging.
• *USB charger not included. Purchase a commercially available USB charging adapter with an output rating of 5 VDC/1.0 A separately.
• *If you require a certificate requester name and address, please be sure to provide them with your order.
• *If you do not contact us together, the requester's name and address on the certificate will be blank.
• *It will take about 2 weeks for delivery because we will proofread the order after confirming it. (However, please note that it will take additional days for the year-end and New Year holidays and long holidays.)

Package size

• 70x124x180mm
• 0.6kg
