AS ONE Corporation 紅外線熱成像 RFS

Features

• Equipped with a high-resolution infrared sensor, it can measure a wide range of high resolution, high frame rate and up to 550°C.
• Since the temperature information is retained in the shot still image, it is possible to change the display mode and edit the correction and temperature measurement after shooting.
• In addition to changing the emissivity correction (0.00~1.00), it has numerical correction functions for ambient temperature, reflection temperature, air humidity, delta temperature and distance.
• With touch panel operation, you can intuitively select the place where you want to check the temperature.

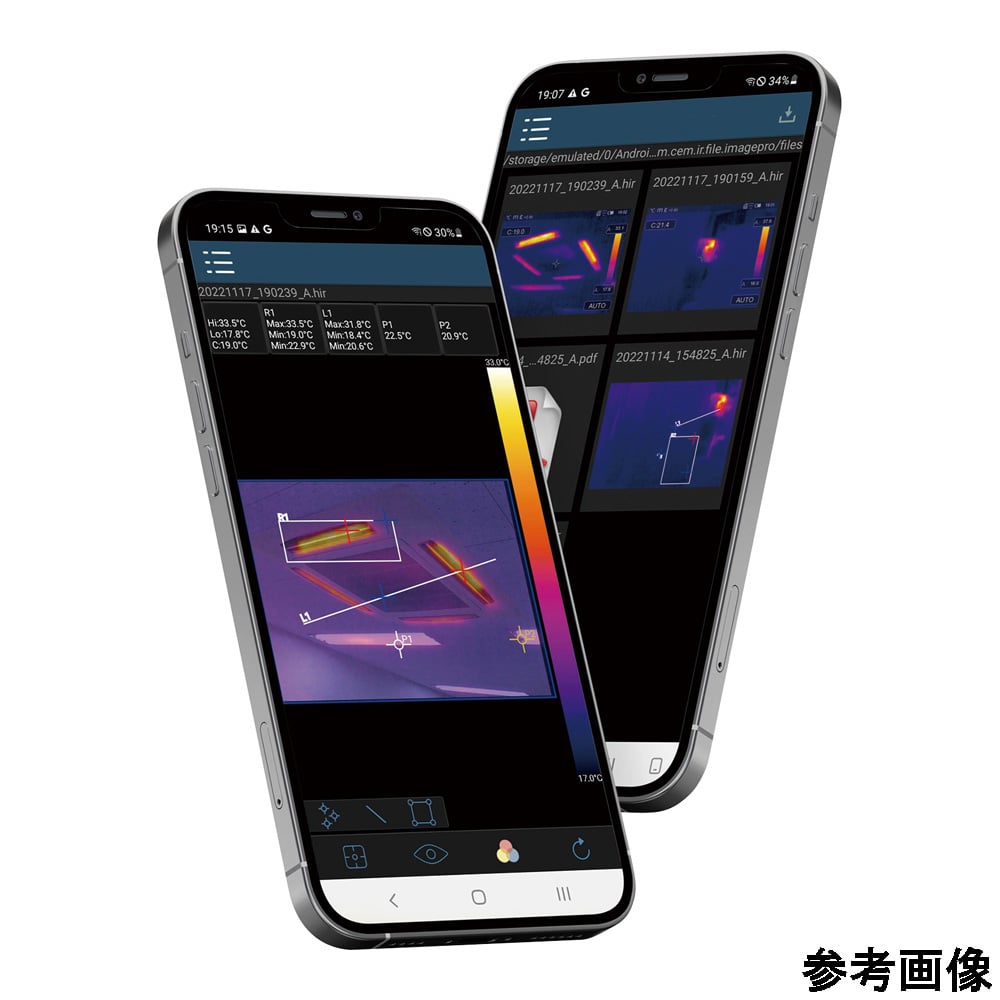

• It is an application compatible with smartphones and PCs, and allows remote control and screen sharing via PCs.

Specification

• Resolution: 120 x 90 pixels
• Resolution: 0.1°C
• Temperature measurement range: -20°C to +150°C, 0°C to +550°C (minimum display unit: 0.1°C)
• Temperature measurement accuracy: ±3%%%%rdg or ±3 deg. C, whichever is greater.
• Emissivity correction: 0.00~1.00 (variable)
• Measurement wavelength: 8~14 μm
• Viewing angle: 50° x 37°
• Fixed minimum focal length: 0.5 m
• Frame rate: 50 Hz
• Display: 3.5 inches color LCD (640 x 480 capacitive touch panel)
• Memory: 3.4GB internal storage, 32GB microSD card (included)
• Image formats: still image/HIR (thermal image format), JPEG (640 x 480 pixels)
• VIDEO: MP4 (480 x 360 pixels)
• Power: 3.7 V rechargeable lithium battery (1500mAh), USB connection (image transfer/battery charging)
• Dustproof/Waterproof: IP54
• Size: Approx. 129 x 22 x 87 mm
• Weight: about 200 g
• Included Items: Carrying case, USB cable, strap, micro SD card (32GB), SD card adapter, SD card case

Package size

• 165x120x54mm
• 0.51kg
