A&D 黑球熱中暑指數監測儀 附一般校正 AD5695B-00A00

Features

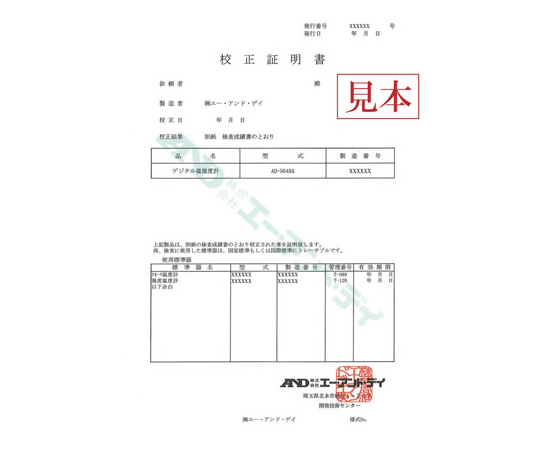

• It comes with a general calibration certificate.
• JIS B 7922:2023 compliant, Class 2 compliant.

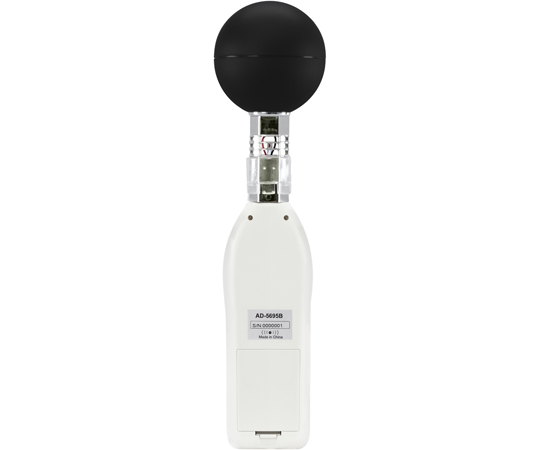

• Stable measurement is possible with the 75 mm spherical Ishikawa black sphere.
• Heat stroke index (WBGT) alarm setting is possible (20~50°C).
• The mode can be switched between indoor (IN) and outdoor (OUT) according to the place of use.
• Can be attached to commercially available camera tripod (Tripod Screw Hole 1/4-20UNC). *For accurate measurement, please set it at a height of 1.1 m.
• It has maximum and minimum memory functions, display hold function and auto power off function.

Specification

• JIS B 7922:2023 Precision Division: Class 2
• Indicated items: heat stroke index (WBGT), temperature (TA), relative humidity (RH), black globe temperature (TG)
• Measurements: Temperature (TA), Relative Humidity (RH), Black Globe Temperature (TG)
• Heat stroke index (WBGT) Measurement range: 0~50°C(Display range -2.0~52.0°C, minimum display 0.1°C)
• Temperature (TA) measurement range: 0~50 deg. C(Display range -2.0~62.0°C, minimum display 0.1°C)
• Relative humidity (RH) Measurement range: 10~90%%%%RH(Display range 0.1~99.9%%%%RH, Minimum display 0.1%%%%RH)
• Black globe temperature (TG) Measurement range: 0~80°C(Display range -2.0~82.0°C, minimum display 0.1°C)
• Operating environment (operating range): Temperature: 0~50°C, Relative humidity: 0~90%%%%RH(However, no condensation.), Wind speed: 0.3 m/s or more
• Heat stroke index (WBGT) alarm setting range: 20~50°C (configurable in 0.5°C increments), alarm buzzer volume approx. 80dB (10 cm distance)
• Black sphere: Ishikawa black sphere (outer diameter Φ75 mm), thickness 0.5 mm, made of copper, emissivity 0.95
• Power: 4 AAA alkaline batteries

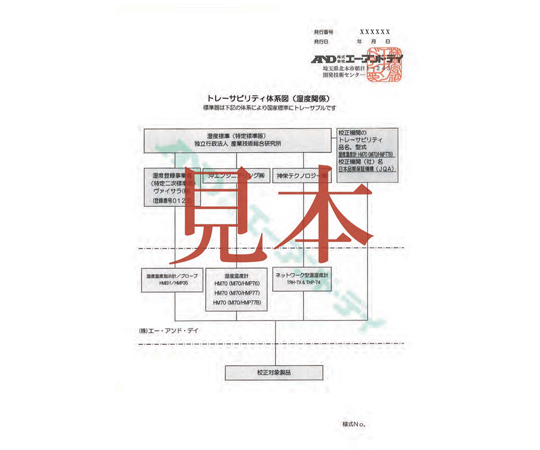

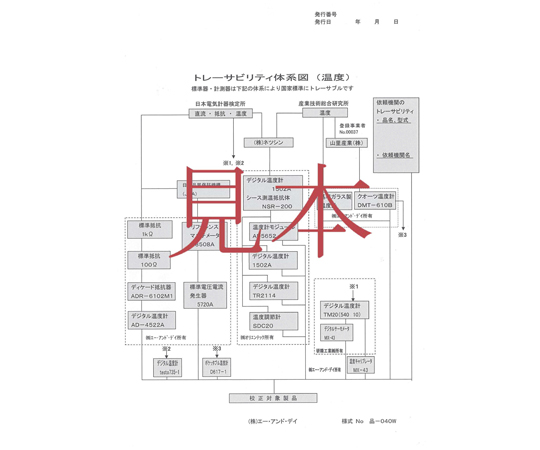

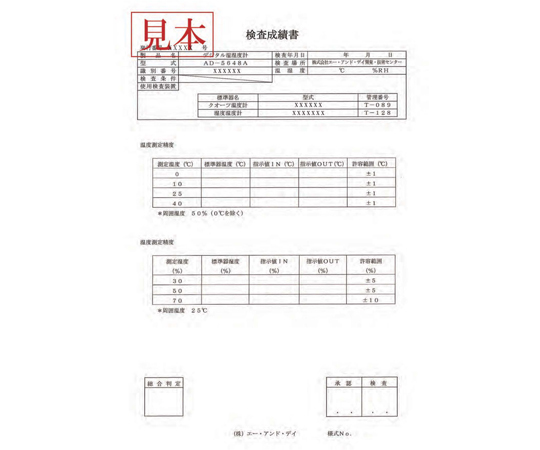

• Accessories: Instruction manual, battery (for monitor), hard case, neck strap, heat stroke prevention guideline label, general calibration certificate
• *This product does not completely prevent heatstroke. The onset of heat stroke is affected by various factors such as temperature, humidity, radiant heat, gender, age, individual differences such as medical history and health condition, and conditions such as exercise, work, and activities of daily living. When using this product, please understand the characteristics of this product and use this product as a guide only.
• *If you feel unwell while using the product, move to a cool place or consult a doctor regardless of the indication on the product.
• *This product may not measure correctly in an environment with a wind speed of less than 0.3 m/s. Caution should be exercised when using in an environment where the wind speed is less than 0.3 m/s and there is no wind speed.
• *If you require a certificate requester name and address, please be sure to provide them with your order.
• *If you do not contact us together, the requester's name and address on the certificate will be blank.
• *It will take about 2 weeks for delivery because we will proofread the order after confirming it. (However, please note that it will take additional days for the year-end and New Year holidays and long holidays.)

Package size

• 350x150x80mm
• 0.95kg
