Sato Keiryoki Mfg. Co., Ltd. 2通道溫度資料記錄器 (指示器鑿) 記憶體 SK-L751

Features

• Temperature Data Logger that can store up to 16,000 pieces of measurement data
• You can select from 4 different storage methods depending on the usage (number of one-time endless data pages)
• Up to 2 temperature sensors can be connected
• Analysis software included
• Soft features
• ▼ Up to 10 indicator meters can be connected simultaneously using a USB hub
• ▼ Graph display, storage, printing, and analysis (Scale, scale, period selection, cumulative temperature analysis, etc.) depending on the usage
• ▼ Data can also be saved in CSV format

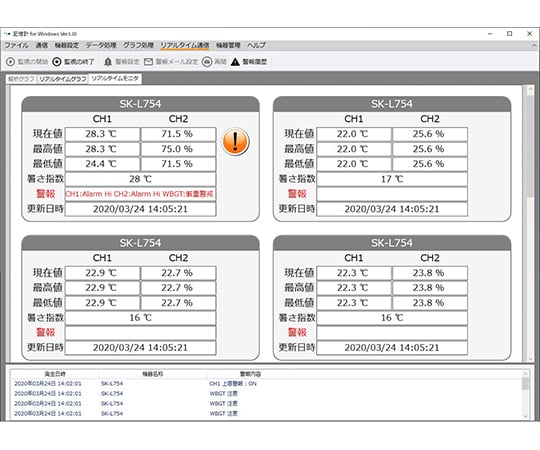

• ▼ Real-time monitoring, alarm settings, and email alerts to pre-registered email addresses
• Key lock function prevents erroneous operations such as storage
• Upper and lower limits of alarm values can be set (LED is lit when the alarm is activated)
• Can be used with both batteries and AC adapters (sold separately)

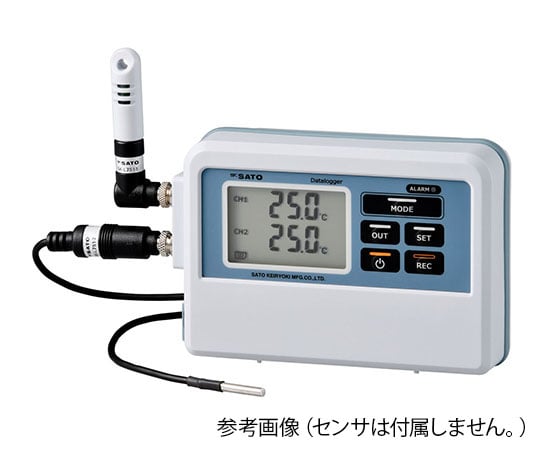

• ※ When using together, the AC adapter takes precedence. When the AC adaptor stops supplying power due to a power failure, the battery switches automatically. ? Even if the power is turned off, the stored measurement data is stored in internal memory. ? The stored measurement data can be copied to a microSD memory card (sold separately) in addition to being downloaded to a computer. ? ? The image has a sensor installed, but it is only an indicator. Please note that the sensor is required separately.

Specification

• Measurement Range: Varies by connected sensor
• Resolution: 0.1 °C
• Indicator accuracy: ± 0.2 °C (0 to 40 °C), ± 0.3 °C (except the left) * "Overall accuracy" is the sum of the accuracy of connected sensors
• Display Function: Temperature/Humidity Warning (ALM), Storage Method, Status Display (REC/RES), Storage Amount (Bar), SD Memory, Low Battery Mark, Key Lock Mark, Error Message, Setting Value Display at Each Setting
• Number of storage channels: Temperature 2 channels
• Storage capacity: Each channel 16000 data
• Memory interval: 1 sec., 2 sec., 5 sec., 10 sec., 15 sec., 30 sec., 1 min., 2 min., 5 min., 10 min., 15 min., 30 min., 60 min., 14/90 Street

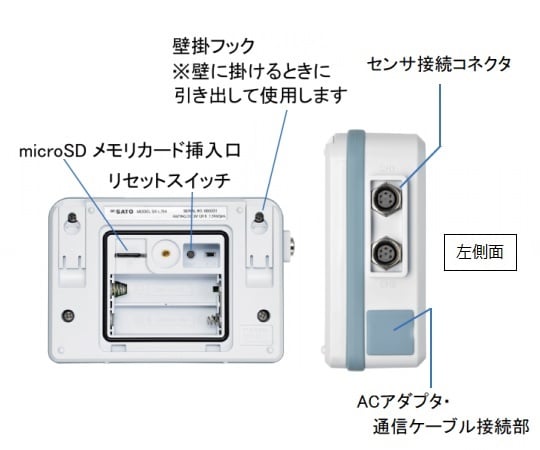

• External memory: microSD, SDHC/up to 32 GB. *Use a preformatted memory. The format supported by this tester is FAT 32 format. NTFS format not available
• dust control waterproofing: JIS C0920IP 65 compliant * but SK-L 751 - 2/21/22/31/32 when sensor is connected and when using battery (not waterproof when AC adapter is used)
• environment used conditions: -10 to 60 °C 85%%%% rh or less (non-condensing)
• Power Supply: AA size alkaline battery 2 pieces or dedicated AC adapter (optional)
• battery Life: In measurement mode/Approx. 500 hours, In storage mode/Each interval can store 16,000 data (LCD is off). It is recommended to use an AC adapter when displaying constantly or in measurement mode.
• Dimensions: (W) 114 x (H) 80 x (D) 35 mm (Excluding Projecting Portion)
• Body Weight: about 232 g
• Accessories: AA size Type alkaline battery 2 pieces, Communication Cable (1.5 m) 1 piece, 1 Owner's Manual, 1 Quick Manual, Analysis Software CD-ROM 1 piece
• Compatible OS: Windows 10/8. 1/8 (64 bit/32 bit Japanese version) * The latest service pack must be installed.
• Other
• ▼ Memory 4 GB or more (32 bit) 8 GB or more (64 bit)
• ▼ Hard drives require a minimum of 4 GB free capacity
• ▼ Have a USB port and CD-ROM drive. When you use the email alert function, you need an internet connection and an email address.
• Optional: No. 8229 -50 dedicated AC adapter (cable 1.5 m)

Package size

• 160x150x65mm
• 0.42kg
