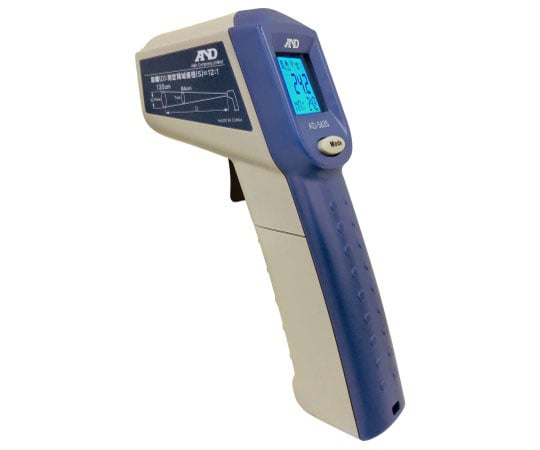

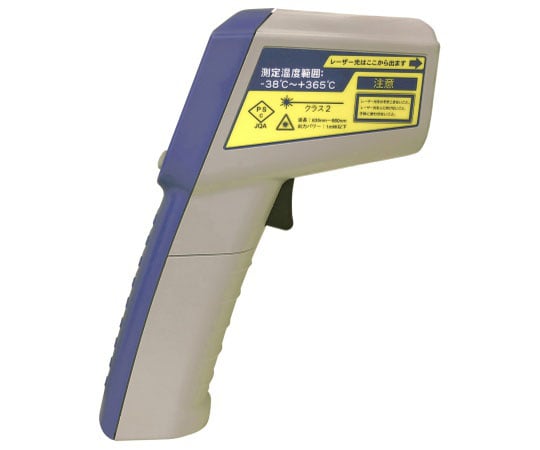

A&D 紅外線輻射溫度計附雷射標記附英文校正證書 AD-5635

Features

• Non-contact infrared radiation thermometer with laser marker for temperature measurement.
• Instantaneous measurement (response speed about 1 second) is possible.
• It is safe and hygienic because it is non-contact.
• The LCD is backlit.
• PS/C mark certified product.
• For heat generation and temperature control of machinery, piping and air conditioning equipment.
• For temperature measurement and control of paint drying process.
• For temperature control of asphalt pavement and concrete curing.
• For plastic molding and temperature control of resin products.
• For heat generation and temperature control of walls, floors and ceilings of buildings.
• For controlling fermentation and aging temperature of foods such as sake, soy sauce, miso and bread.
• For temperature control of food (Meat and seafood) and during transport and storage.

Specification

• Product Size (mm): Length 162 x Width 40 x Height 0.17
• Product Weight (kg): 0.17
• Measurement range: -38 to + 365 °C
• Minimum display: 0.1 deg. C
• Response time: Approximately 1 second (90%%%%)
• Response wavelength: 5 to 14 μm
• Emissivity setting: 0.95/0.70/0.30 (Initial factory 0.95)
• Measuring distance (D): measurement range (S) = 12: 1

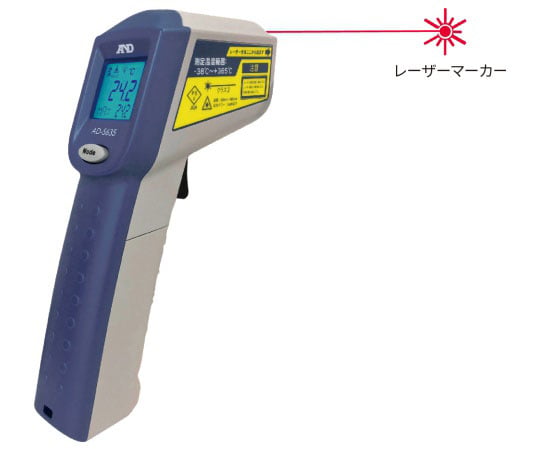

• laser marker
• ▼ Class 2 (JIS C 6802)
• ▼ Laser wavelength: 635 to 660 nm
• ▼ Output power: Less than 1 mW (marker off is possible)
• battery: AAA size type battery 2 pieces
• battery Life: 14 hours or more (Alkaline battery, continuous use)
• blister pack
• *A product with a calibration certificate is an original service of Azwan which calibrates measuring instruments at the time of shipment by AS ONE or a AS ONE partner company and issues calibration certificate.
• This product is a general calibration. calibration certificate (calibration certificate, test results report, traceability system chart) is attached.
• *It comes with both a set of 3 Japanese documents and a set of 3 English translations.
• The calibration points are 3 points: low, medium and high temperature. If you would like other points, please contact us separately.
