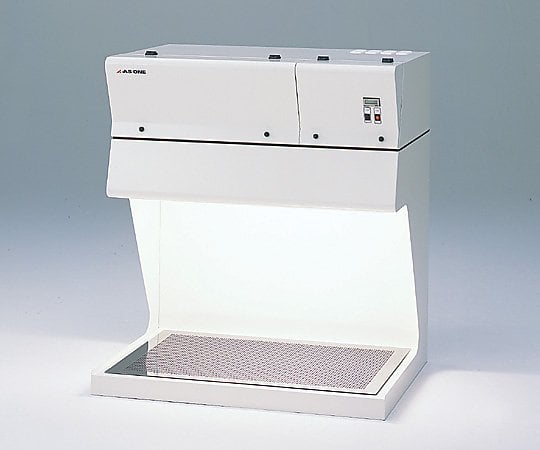

AS ONE Corporation 下吸式抽風櫃 900 x 700 x 1000 毫米 DDL-1-L

Features

• Since gas is sucked downward, it is suitable for suction of gas with a large specific gravity.
• There is a waste liquid tray under the work surface, which is also suitable for dissecting small animals.
• Work surface and waste liquid tray are removable for easy maintenance.
• Exhaust gas is exhausted through an activated carbon filter, so troublesome piping is unnecessary.
• Equipped with a time accumulator to help guide filter replacement.
• LED lighting is used to save power.

Specification

• Size (mm): 900 x 700 x 1000
• Weight (kg): 61
• time accumulator equipment
• Material: Exterior/Steel (Painted Finish), Work Surface/SUS304, Punching Plate/Waste Liquid Tray/SUS304 Removable
• Filter: 10 Activated Carbon Filters Used (7.5 kg, Pressure Loss 12mmAq)
• Fan: Twin Type Piscoco Fan
• Maximum air volume (single fan capacity): 9.7 m3/min (50 Hz), 10.8 m3/min (60 Hz)
• Maximum static pressure (fan capacity): 385 Pa (50 Hz), 565 Pa (60 Hz)
• Power: 100 VAC 50/60Hz (3P Plug)
• Power consumption: 119/144W at 50/60Hz
• Lighting Device: LED Lighting Lamp (7W x 1)
• Filter: Total Weight/9.0 kg (Activated Carbon Weight/7.5 kg)
• *Activated carbon filter is not included in the body.
• *The organic law and the specialization law cannot be applied.

Package size

• 1060x800x1300mm
• 92kg
