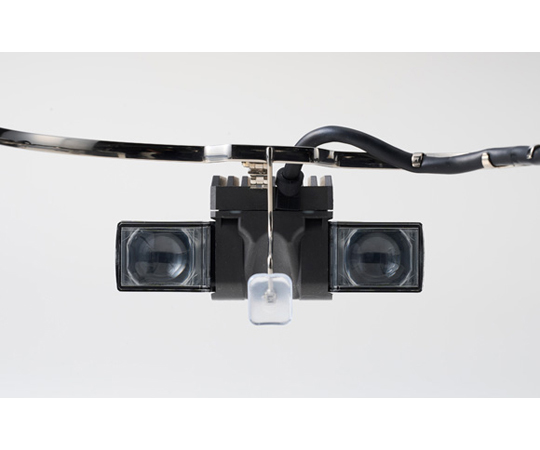

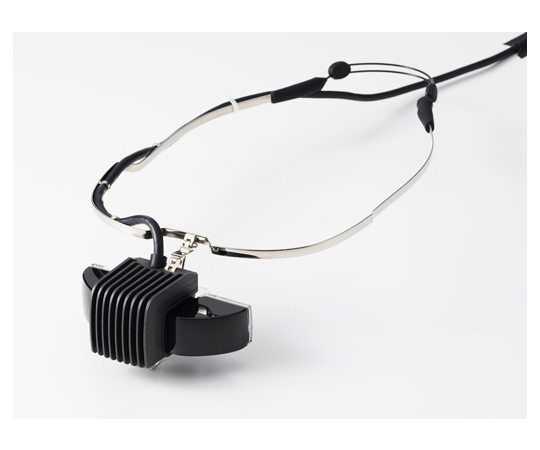

NICHIBAN CO., LTD. 智慧玻璃 NSGV1

Features

• Visual augmentation allows you to see the image and your hand with minimal eye movement.
• The use of a non-see-through viewer, which is not easily affected by ambient brightness, and the binocular vision design have been thoroughly designed for easy viewing.
• With a fixed feeling that wraps your head, you can wear it for a long time with minimal stress.

Specification

• Weight: Approximately 130 g(including frames and cables)
• Panel: 1/2 inch (2 OLED panels)
• Resolution: 1280 x 720
• Aspect ratio: 16:9
• Field of View: Approx. 28°
• Virtual screen size: approximately 19 inches (virtual distance 1 meter)
• Cable: HDMI TypeA (720p/60 Hz) Non-HDCP, USB TypeA (5 VDC/1 A or higher)
• Product Contents: Carry Case, Outer Box, Smart Glass Body, Frame Band, Adjustment Driver, Usage Instructions, Warranty Card

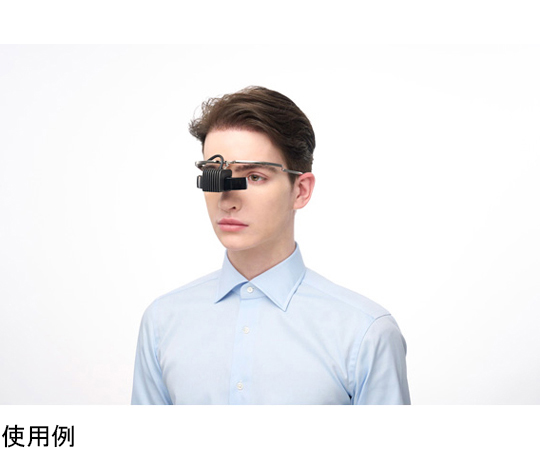

• Use: For procedures using equipment with monitors, such as echo-guided puncture, endoscopic swallowing function tests, and reading work manuals.
• Power: Mobile battery, etc. (USB port power output needs to be at least 5V, 1A)
• ▼ *Connect power directly to a USB port that shares sufficient power, such as a mobile battery or self-powered USB hub.
• ▼ *When connected to a bus-powered USB hub, the power required for operation may not be supplied.
• *Connect to a device that has an HDMI TypeA (720p/60 Hz) port or a device that can be connected with an HDMI converter.
• *This unit does not support HDCP.

Videos

• https://www.youtube.com/watch?v=hq720.jpg

Package size

• 205x330x88mm
• 0.39kg
