商品介紹

Features

Achieves continuous measurement and high-speed inspection of LCR, DCR, and sweep measurements in a single unit
High-speed measurement of 1.5 ms (1 kHz) and 0.5 ms (100 kHz) in LCR mode
High-precision measurement with a basic accuracy of ±0.08%%%%
Ideal for testing resonance characteristics of piezoelectric elements, C-D and low ESR measurements of functional polymer capacitors, DCR and L-Q measurements of inductors (coil transformers), etc.

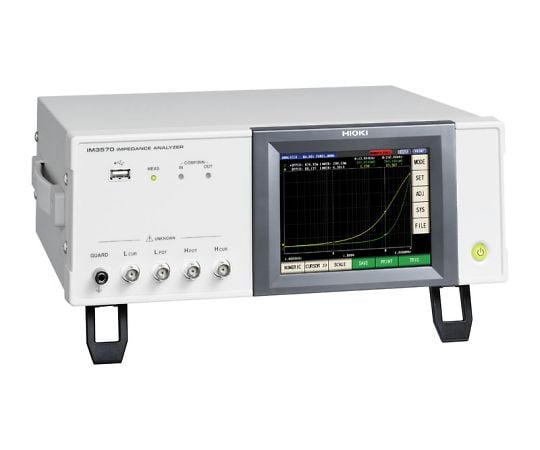

Frequency sweep, level sweep, and time interval measurements are available in Analyzer mode.

Specification

Basic Specifications (Assurance period 1 year, Adjusted Assurance period 1 year)
Measurement modes: LCR (LCR measurement), Analyzer (sweep measurement), Continuous measurement
Measured parameters: Z, Y, θ, Rs (ESR), Rp, Rdc (DC resistance), X, G, B, Cs, Cp, Ls, Lp, D (tanδ), Q
Measuring range: 100 mΩ to 100 MΩ, 12 range (all parameters are defined by Z)
Display range
▼ Z, Y, Rs, Rp, Rdc, X, G, B, Ls, Lp, Cs, Cp: ± (0.000000 [unit] to 9.999999 G [unit]) Only Z and Y are displayed as absolute values.
▼ θ:±(0.000°~180.000°), D:±(0.000000~9.999999)
▼ Q:±(0.00~99999.99), Δ%%%%:±(0.0000 %%%%~999.9999 %%%%)
Measurement signal level: Normal mode/V mode, CV mode/5 mV~5Vrms, (up to 1 MHz) 10 mV~1Vrms (1.0001 MHz~5 MHz), 1mVrms step
measured signal level
▼ [Normal Mode]
▼ V mode, CV mode/5 mV~5Vrms, (up to 1 MHz) 10 mV~1Vrms (1.0001 MHz~5 MHz), 1mVrms step
▼ CC mode: 10 μA to 50mArms (up to 1 MHz), 10 μA to 10mArms (1.0001 MHz to 5 MHz), 10μArms step
▼ [Low Impedance High Precision Mode]
▼ V mode, CV mode: 5 mV to 1Vrms (up to 100 kHz), 1mVrms step
▼ CC mode: 10 μA to 100mArms (100 mΩ and 1 Ω range up to 100 kHz), 10μArms step
Output Impedance: Normal Mode/100 Ω, Low Impedance High Precision Mode/10 Ω

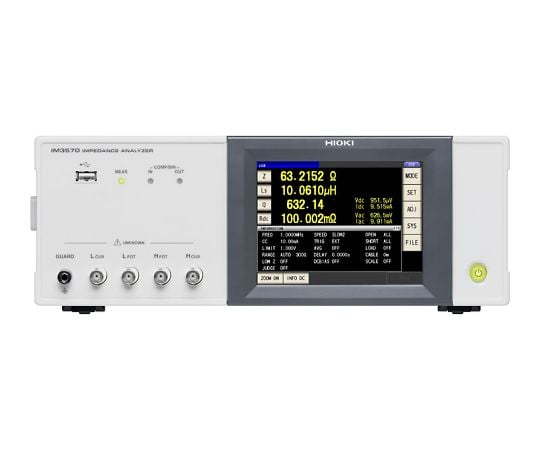

displaying: color TFT 5.7inch
Display: ON/OFF can be set
Measurement time: 0.5 ms(100 kHz, FAST, Display OFF, Representative)
Functions: DC bias measurement, comparator, BIN measurement (classification function), panel load/save, memory function

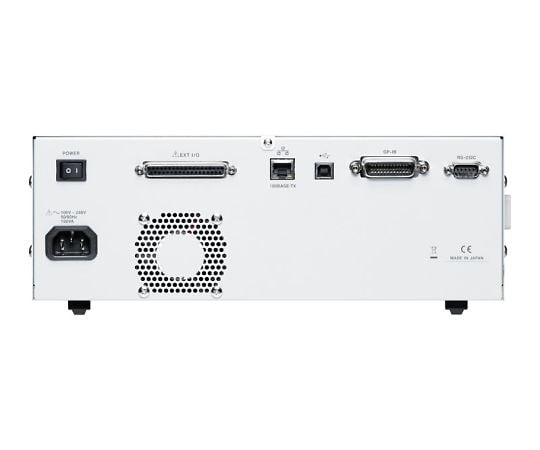

Interface: EXT I/O (Handler), RS-232C, GP-IB, USB communication, USB memory, LAN
Power: 90~264 VAC, 50/60Hz, 150VAmax
Dimensions: 330 W x 119 H x 307Dmm
Mass: 5.8 kg
Accessories: Power cord x 1, Owner's Manual x 1, CD-R(communication instruction manual and sample software) x 1
