HOZAN TOOL INDUSTRIAL CO., LTD. LED 燈 L-716

Features

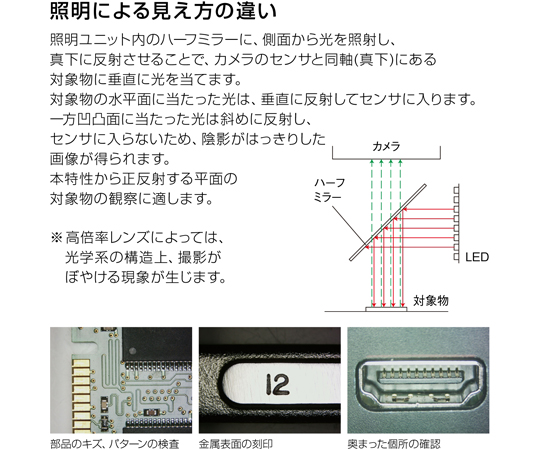

• Coaxial epi-illumination illuminating the object from directly above
• Ideal for observation of mirror surfaces, etc.
• The built-in half mirror emits light from directly above the object.
• It is also possible to inspect the Electrode in the hole or on the mirror surface, or on the touch panel.
• It has a dimming function, and you can adjust the brightness continuously.

Specification

• ■Risk group: Exempt group (Risk group: A classification indicating the degree of biological damage to which lighting equipment such as LEDs can affect. (JIS C 7550/IEC62471))

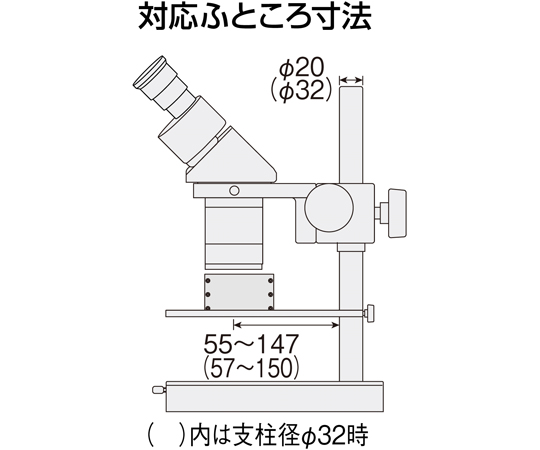

• ■Mounting Strut Diameter: 20~32mmφ
• LED: White LED132

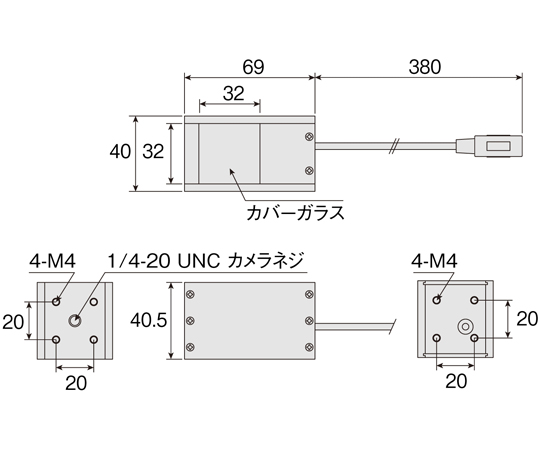

• External Dimensions: [Lighting Unit] 40 (W) x 40.5 (H) x 69 (D) mm [Dimmer] 46φ (W) x 25 (H) mm [Bracket] 50 (W) x 10 (H) x 223 (D) mm * Excluding protrusions
• Life: LED Life: 75000 hours * Depends on operating environment.
• Weight: [Lighting Unit] 145 g [Bracket] 146 g
• Power consumption: 4.5 W
• Voltage: Rated voltage: 12 VDC (with AC adapter)
• Input: 1

Package size

• 200x60x290mm
• 0.66kg
