HOZAN TOOL INDUSTRIAL CO., LTD. LED 燈 L-718

Features

• Acrylic LED light with excellent cost performance
• A4-sized surface-emitting lighting.

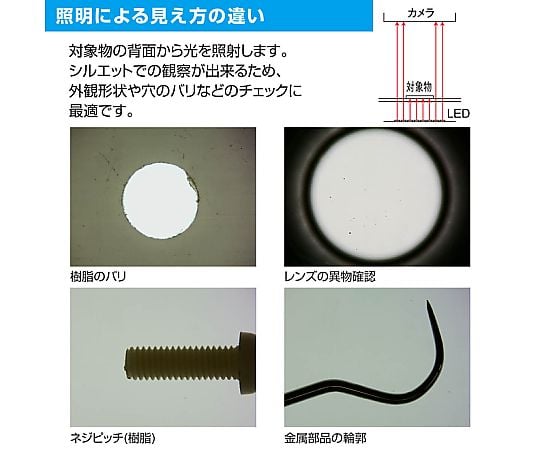

• Ideal for contour confirmation and transparency.
• The wide light emitting surface allows for various sizes of workpieces and can be used in combination with lenses with a wide field of view.
• Thin with a thickness of 8 mm allows inspection and observation without discomfort even when placed on the base.
• *Cannot be used in combination with L-521.

Specification

• ■7 levels of dimming

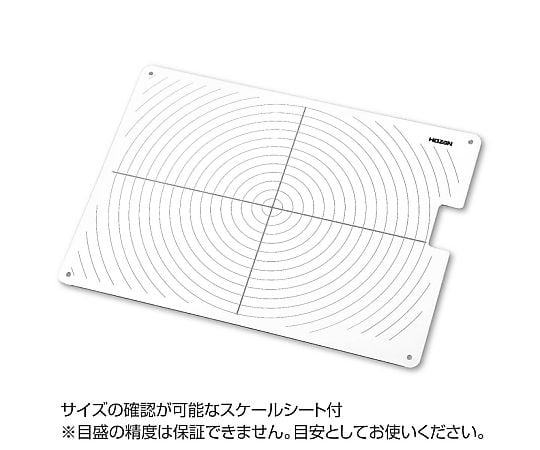

• ■With Simple Scale Sheet (Scale Cross ...1 mm, Concentric Circles ...10 mm)
• *Accuracy of scale cannot be guaranteed as it is made of acrylic. It is not suitable for precise dimensional measurement such as calibration.
• ■Risk group: Exempt group * A classification indicating the degree of biological damage caused by lighting equipment including LEDs. (JIS C 7550/IEC62471)
• Remarks: Surface light emission
• LED: White LED24
• Dimensions: 350 (W) x 8 (H) x 262 (D) mm
• Material: Acrylic
• Life: LED Life: 40,000 hours * Depends on operating environment.
• Weight: 950 g
• Power consumption: 6.1 W
• Color temperature: 6500 K
• Dimension: Light emitting surface Dimension: 210 x 297 mm (A4 size)
• Voltage: Rated voltage: 12 VDC (with AC adapter)
• Quantity: 1
• Accessory: AC Adapter Included

Videos

• https://www.youtube.com/watch?v=h87SiZCWF5w.jpg

Package size

• 400x285x70mm
• 1.3kg
