ESCO Company Ltd. 簡化型無管式排煙櫃 SPD -3 A7

Features

• This product is ideal when it is difficult to install a fume hood or when there is no equipment in the laboratory to use low concentrations and trace amounts of organic solvents and toxic gases.
• It has a certified containment capability. Certified by ASHRAE110-1995 (US) and BS7258 (UK) (SPD-4A7)
• The ergonomic front oval opening allows you to reach each part of the work area when you insert your hand. It also protects workers from harmful substances.
• The front window is a hinged panel that can be opened and closed in two stages to provide access to the lab equipment in the cabinet.
• The front windows and sides are made of transparent acrylic, providing a nice view inside and a comfortable workspace.
• There are two access ports on the back that allow you to pass the power cords for any device in the cabinet.

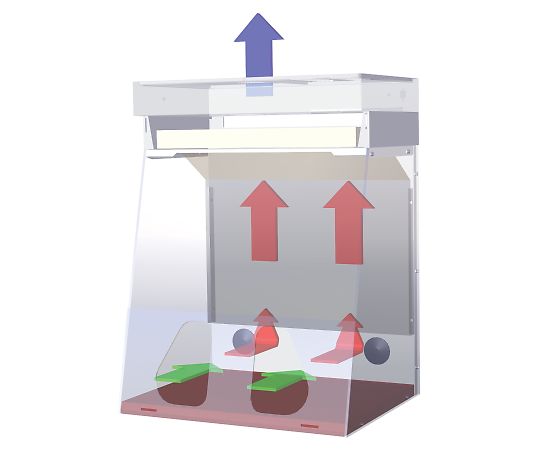

• Utilizing our experience in conventional fume hoods, we have designed unique baffles to improve sealing and efficiently remove chemical gases from work areas.
• There is a dent on the workbench, so there is no worry of spreading even if liquid is spilled.

Specification

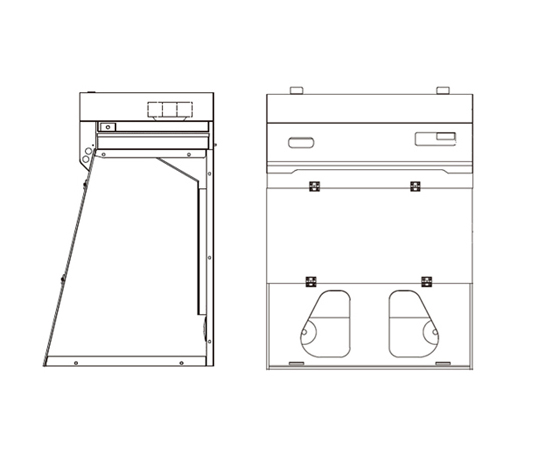

• Outer dimensions: 840 (W) x 700 (D) x 1125 (H) mm
• Internal dimensions: 820 (W) x 651 (D) x 817 (H) mm
• Air flow rate (at initial speed): 166 m 3/h
• Inlet velocity: Initial setting: Average of 0.5 m/s measured at the level surface of the work opening/closing section
• Activated carbon filter: 1 can be set (1 standard filter comes standard) (lineup of 8 types of filters)
• Lighting intensity: 350 Lux or more at work surface level
• Structure: Body and internal baffle system: 1.2 mm 16 gauge galvanized steel sheet white fired epoxy powder coating finish Front window: 6 mm acrylic resin Side: 9.5 mm acrylic resin Workbench: Stainless steel
• Weight: 86 kg (filter included)
• Power supply: 100 VAC 50/60 Hz

Package size

• 840x697x1110mm
