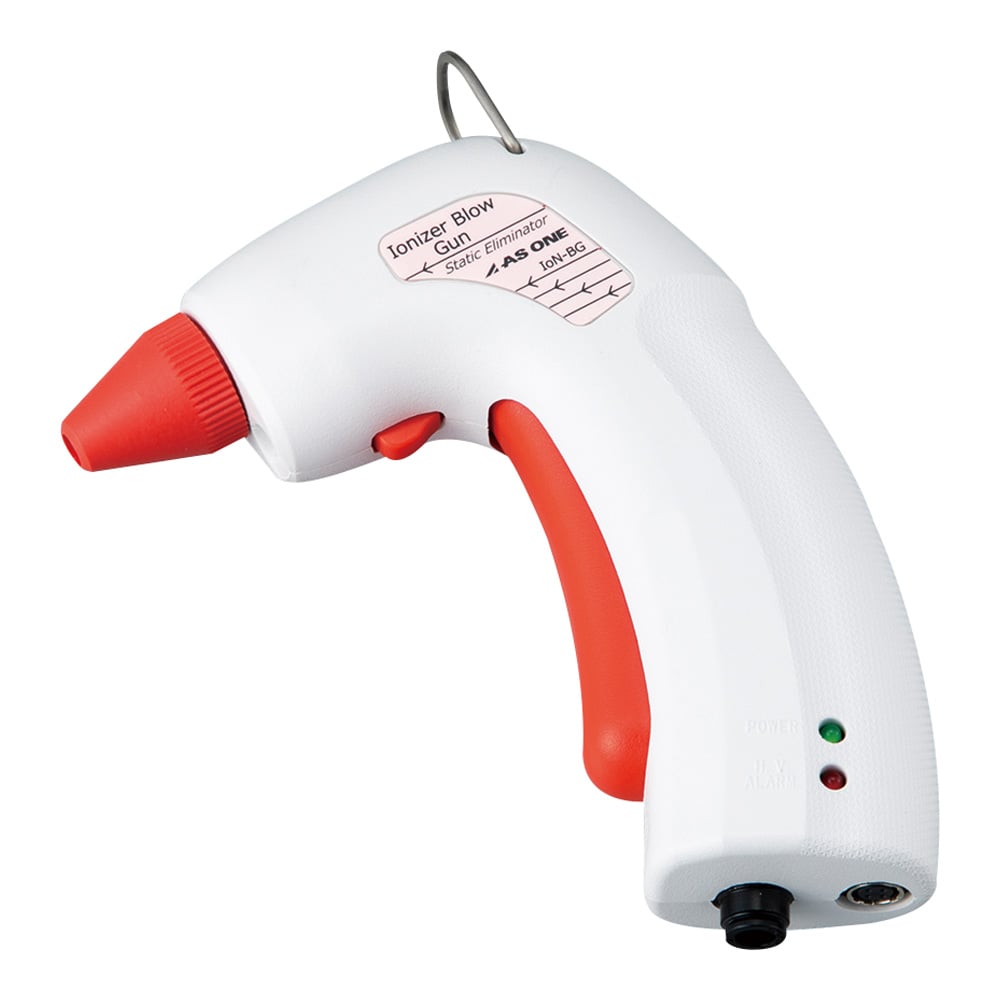

AS ONE Corporation 布羅根離子產生器 IoN-BG

Features

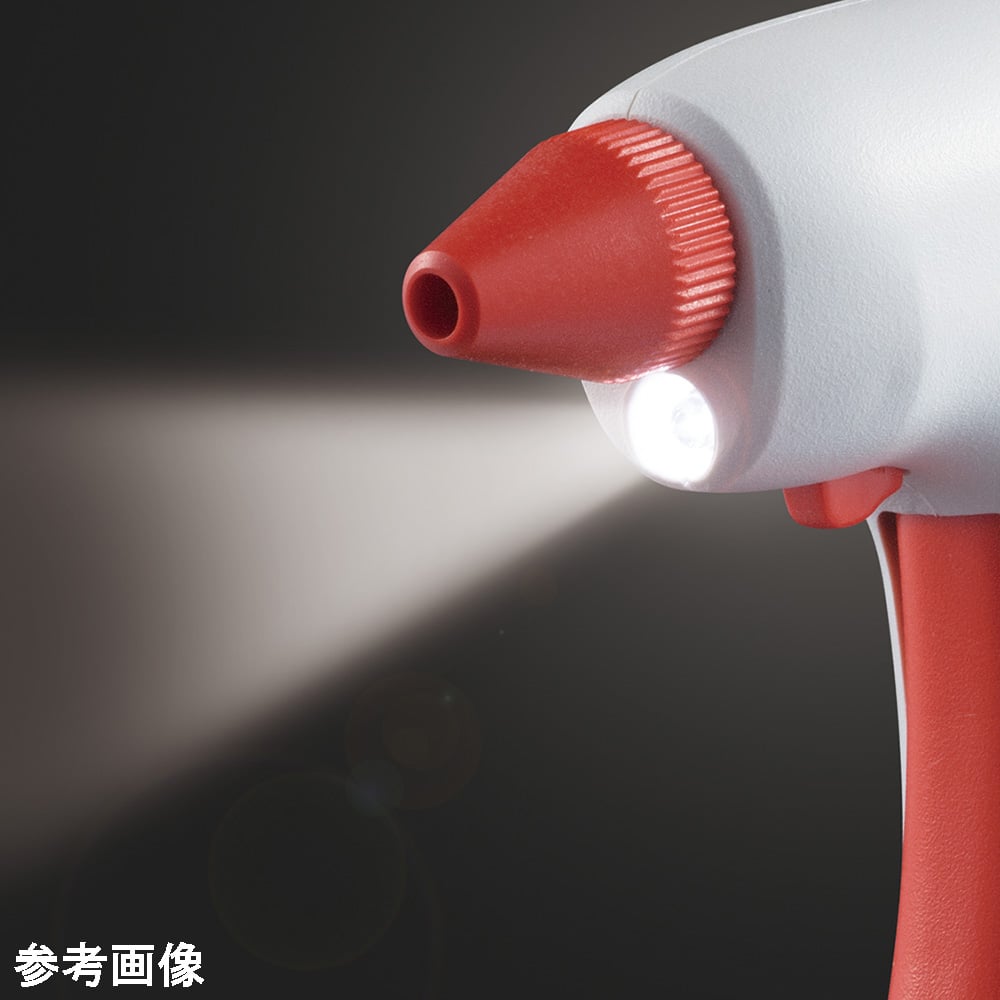

• Equipped with white LED, dust attached to the workpiece can be checked while working.
• Operation and warning LEDs are placed on both sides for constant operation confirmation.
• Equipped with a piezo transformer, it is a safe design that prevents high voltage cables from coming out.
• Needle electrodes can be easily cleaned and replaced with specialized tools.
• Lightweight body reduces worker fatigue.
• Ergonomic handle with appropriate nozzle angle when gripped.
• Mesh pattern anti-slip finish that can be gripped firmly even with clean gloves.

Specification

• Size (mm): 36 x 102 x 150
• Weight (g): 198
• Ion generation system: AC high-frequency corona discharge system
• Ion Balance: ±10 V or Less (At the time of shipment: Input air pressure 0.3 MPa, measuring distance 150 mm)
• Amount of ozone generated: 0.05ppm or less (measuring distance: 50 mm)
• Operating air pressure: 0.1~0.6 MPa
• Air flow rate: 180 L/min (at 0.3 MPa)

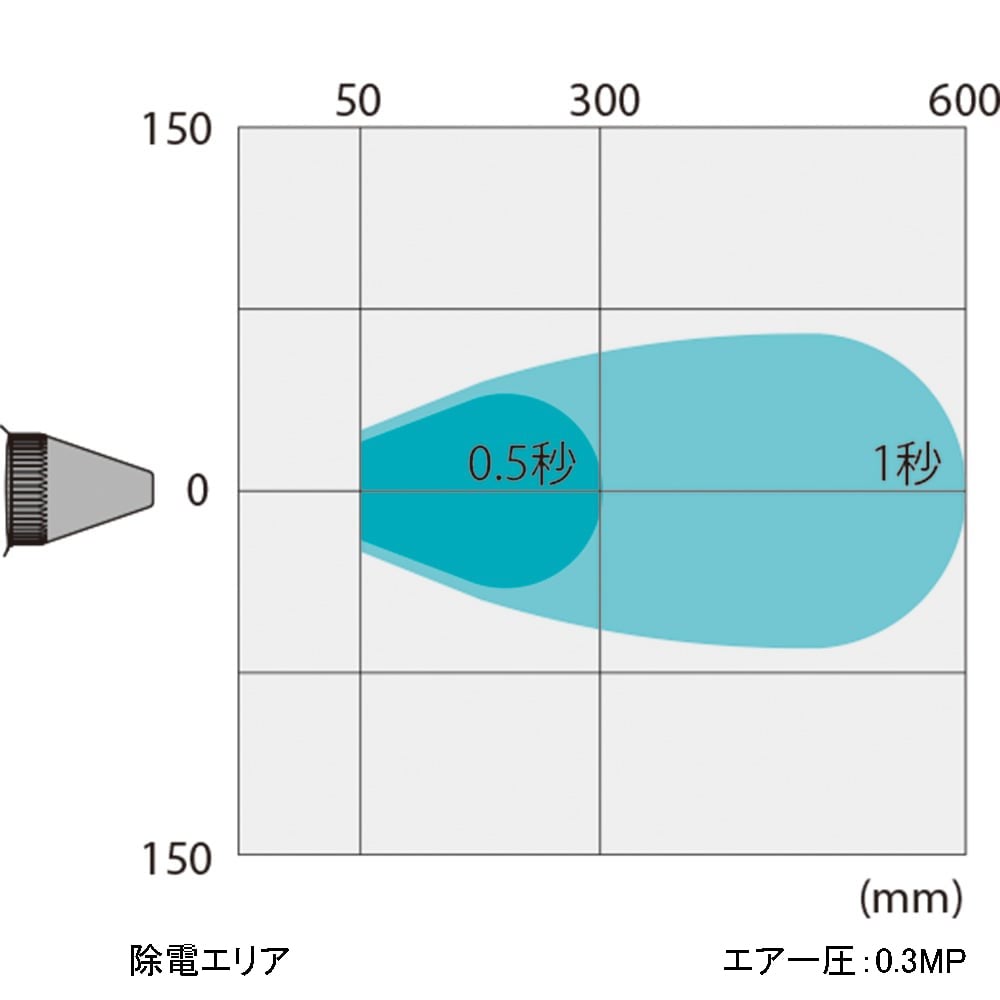

• Static elimination time: 1 second or less (0.3 MPa, Measuring Distance 150 mm)
• Working Distance: 50~300 mm
• Air Hose Used: Outer Diameter φ6mm
• Power: 24±5%%%% DC (100 ~240 AC Adapter Included)

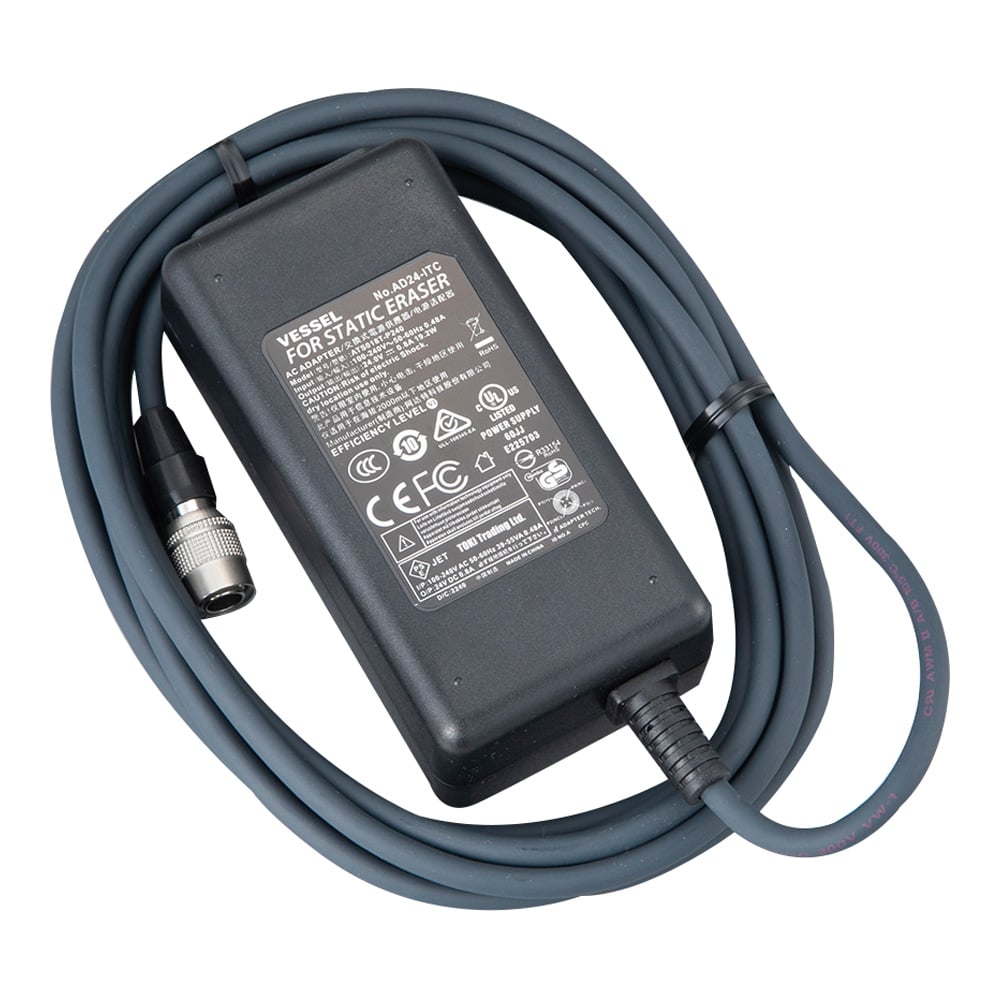

• Accessories: AC Adapter (Power Cable 1.8 m), Standard Nozzle, Joint Connection Nozzle, Needle Electrode Replacement Driver

Package size

• 260x180x90mm
• 0.86kg
