HOZAN TOOL INDUSTRIAL CO., LTD. 數量計數器 LC-100

詢價商品請諮詢取得報價及交期
商品包含 1 種型號,請點選「立即選購規格」挑選

💡 重要通知:

因中東戰爭造成原物料波動影響,若訂單成立後進貨成本發生重大異動,我們將主動聯繫您協商處理。造成不便,敬請見諒。

登入即享專屬優惠價格
付款月結報帳 / 信用卡 / 銀行轉帳
運送宅配快速到貨,滿 NT$ 999 元即享免運!

選購型號

此商品所有型號都需詢價,請按「訂購諮詢」取得報價及交期
商品型號ABP-67312098
Quantity Counter Counter
原廠型號 LC-100
滅菌無
期貨16~30工作天
1piece

商品介紹

Features

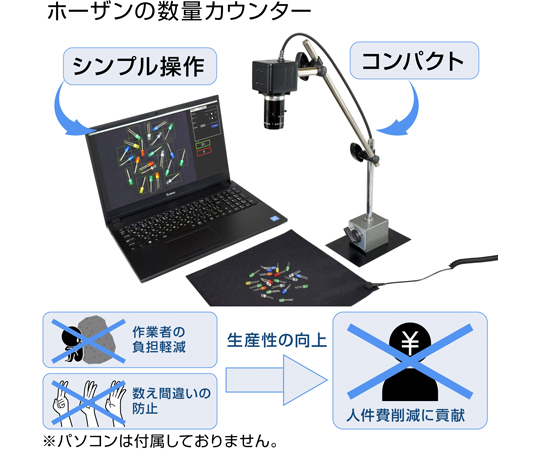

  • Easy and compact parts counter.
  • Line them up and count them instantly.

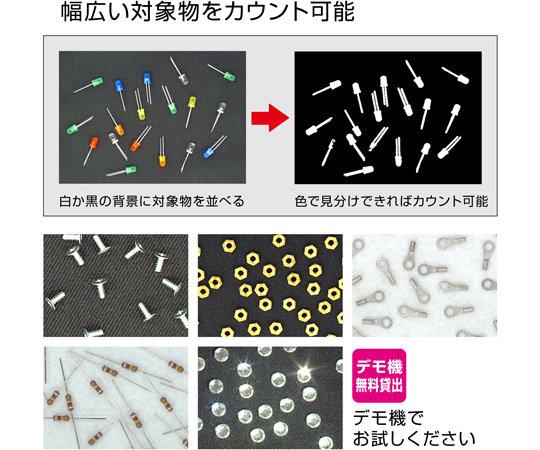

  • It is a parts counter that can count the number of parts and small articles.

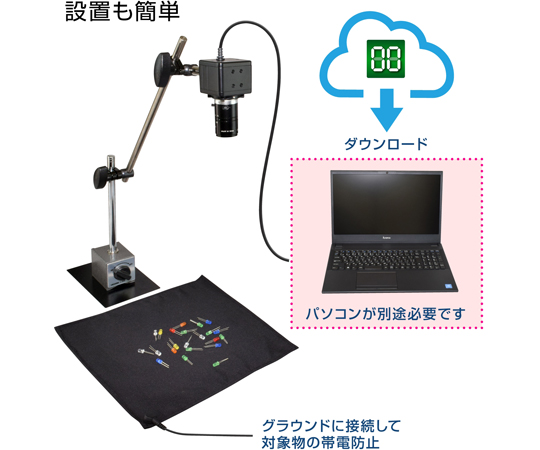

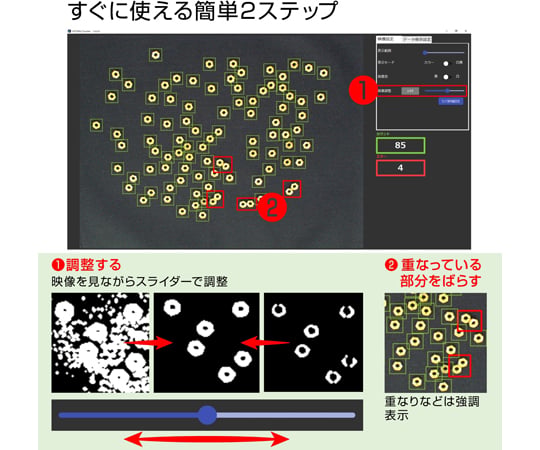

  • Just line up the objects to be counted in front of the camera and separate the overlap for instant counting.
  • Since it is compact, it does not take up much space, and since it is easy to move, it can be used anywhere.
  • It also comes with a cloth (anti-static product) to be laid under the object and a ground wire.

Specification

  • Upper limit of count: 200 counts (100 counts for a hollow object) * This is a software limitation, and depending on the size of the object, it may not be possible to count up to the upper limit because it does not fit within the field of view.
  • Field of View: 404 x 303 mm (400 mm distance) ~210 x 157 mm (200 mm distance) * These values are approximate for use on a desk and may vary depending on the installation method and the angle at which the camera is mounted.
  • Functions: Quantity counting, image saving, report output
  • [Recommended Software Environment]
  • ▼ OS: Windows 10/11 (64bit) * Microsoft Japan does not provide warranty or support for problems that occur while using an OS that is not supported by Microsoft Japan.
  • ▼ CPU: 6th generation Intel Core i5 or better
  • ▼ Memory: 8GB or more
  • ▼ Storage space: 106MB or more * This is the amount of free space required for installation, and is required to download software and store images.
  • ▼ Ports required: USB 2.0 Type-A x 2
  • *A separate PC is required to use it.
  • *It is recommended to check the operation of the demo unit before purchase. (The software is available for a trial period of 7 days.)
  • Set Contents: (6 pieces) L-837, L-600-6, L-505, PD-2, Background Cloth (White/Black), Ground Wire (with Alligator Clip)

Videos

  • https://www.youtube.com/watch?v=y-JvSzNLunk.jpg

Package size

  • 175x350x180mm
  • 2.7kg
以上圖片及相關資訊由 AS ONE 提供。
