T&D Corporation pt 溫度資料記錄器 附感測器 附英文校正證書 TR-55i-pt

Features

• It is small and battery-powered, so it can be installed anywhere.
• The logger body is waterproof and can be used in various environments of -40~80°C.
• Recorded data can be transferred to a personal computer via the optional communication port TR-50U2 (1-5020-22) or the data collector TR-57DCi (1-2322-16-30 * 1) for graph display and data analysis.

Specification

• Measuring range (deg. C): -199 to + 600
• Measuring resolution: 0.1 degrees C
• Data storage capacity: 16000
• Recording interval: 1, 2, 5, 10, 15, 20, 30 seconds, 1, 2, 5, 10, 15, 20, 30, 60 minutes
• Power supply: Lithium battery LS 14250 x 1
• Body dimensions: 62 x 47 x 19 mm
• Body weight: About 45 g
• Dustproof and waterproof: IP 64

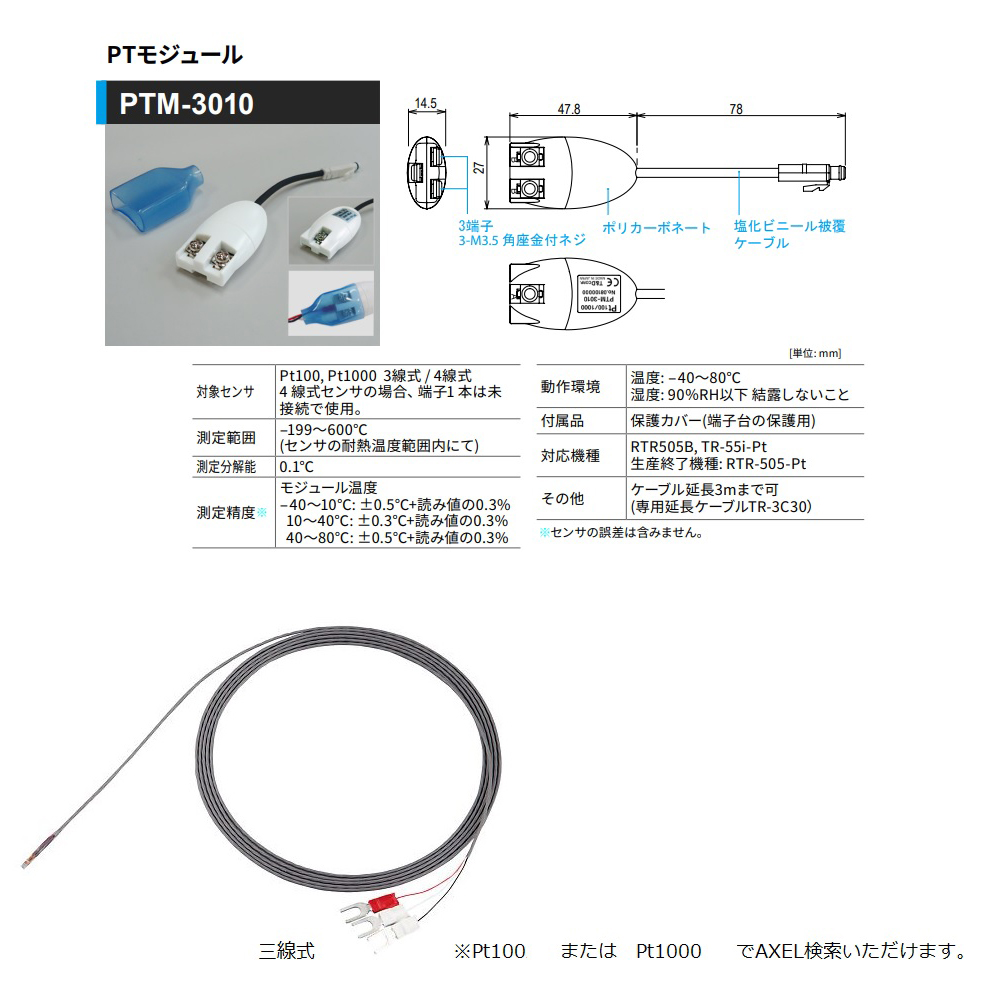

• Accessories: Input module, Pt sensor (TR -8120 -3.2 -100 -1 M)
• Calibration points are 2 points: -80 degrees Celsius and 0 degrees Celsius. If you would like additional points, please contact us separately.
• *Calibration at -196 C is also possible. (Separately, 16,000 yen)
