Pathos AC變壓器 12V 1.0A (2.1 毫米插頭) PAS21210A

Features

• DC stabilized output type AC adapter
• This is a worldwide compatible (input 90 VAC to 264 VAC) switching type AC adapter. The output plug is φ2.1 mm, and polarity can be selected by replacing the tip. The default setting is center minus. The input voltage range is 90 VAC to 264 VAC, which is wider than the general range of 100 VAC to 240 VAC.

Specification

• Input voltage (V50/60Hz): 90 VAC ~ 264 VAC
• Output voltage (DC): 12 V
• Output current: 1.0 A
• Output Plug Shape: Outer Diameter: 5.5φ, Inner Diameter: 2.1φ, Length: 9.5 mm
• Input plug shape: direct type

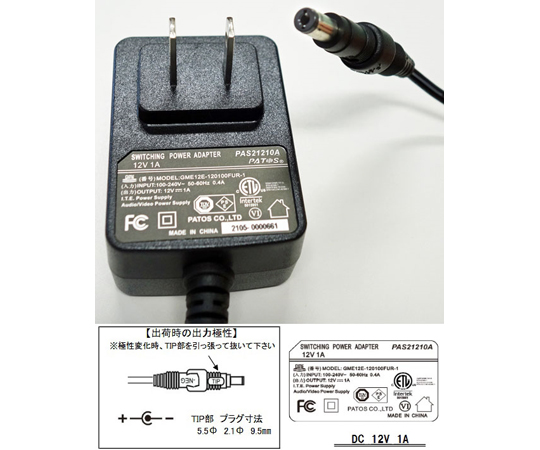

• Polarity: Center (+) (-) can be replaced
• DC cord length: 1.8 m±100 mm
• Weight: 80 g

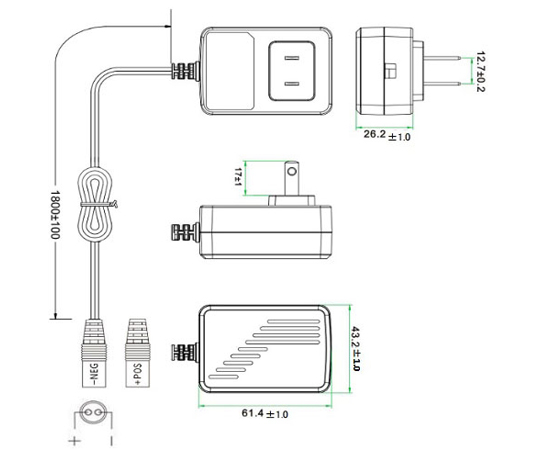

• Dimensions: L61.4 x W43.2 x H26.2mm
• Safety standard: PSE ELT
• Circuit protection: overvoltage, overcurrent, short circuit
• External Power Regulations: DOE: Level 6
• Note: Noise standard: FCC Part15 Subpart B
• Ripple: 240mVp-o max
• Input Method: Blade Type

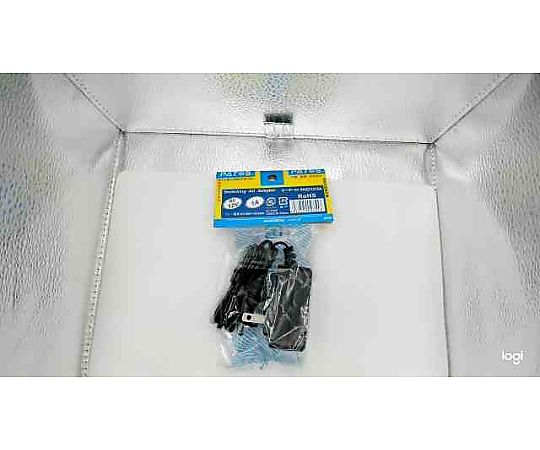

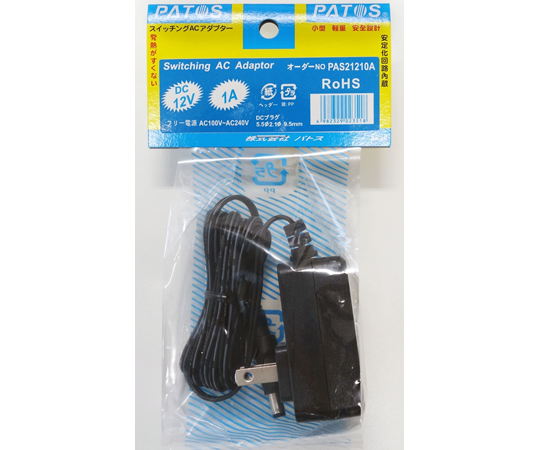

Package size

• 110x185x50mm
• 0.1kg
