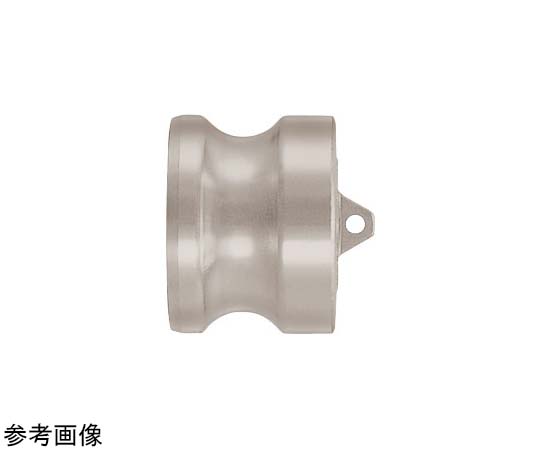

NITTO KOHKI CO., LTD. Lever Lock Cap Stainless Steel Nominal Size 3/4 Socket Cap

Features

• For low pressure.
• Can be widely used for transporting liquids, gases and powders.
• Because of the end face sealing structure, there are few irregularities on the inner surface, and smooth fluid transport is realized.
• It can be connected to products whose connection dimensions comply with the U.S. military standard A-A-59326 (MIL-C-27487).
• Various body materials, sizes and mounting shapes have been standardized to meet a wide range of applications.
• The stopper function further enhances safety.
• Compatibility: The plug and socket can be connected regardless of the mounting shape as long as they are the same size.

Specification

• Material: Stainless steel
• Nominal size: 3/4
• Mass (g): 95
• L(mm):39
• A(mm):12
• ΦD(mm):32
• Valve Structure: Double Road Open Type
• Applicable fluids: water, air, hydraulic fluid, powder, steam
• Maximum Working Pressure (MPa{kgf/cm2}): 1.8{18}
• Pressure Capacity (MPa{kgf/cm2}): 2.7{27}
• Type: Socket
• Specifications: Socket Cap
