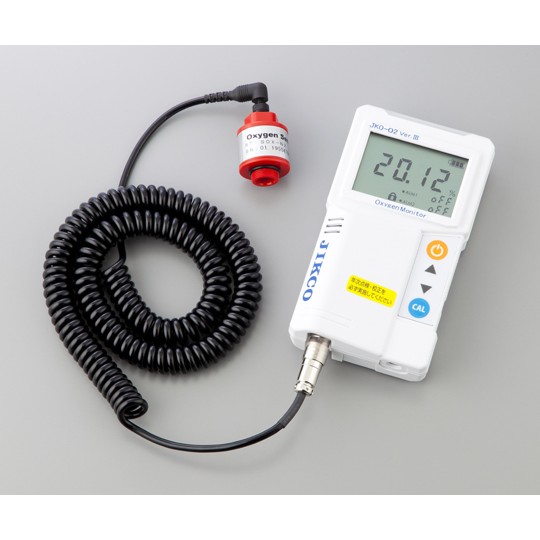

ICHINEN JIKCO 低濃度氧氣監測儀 JKO-O2LJD3 JKO-O2LJD3 和更多型號

Feature

• Equipped with highly responsive sensor to allow measurement of residual oxygen concentration even in areas with extremely low density.
• Sensor is threaded M16 P1 so that it can be directly connected to the device, or inserted directly into the line using inline jig sold separately for oxygen concentration measurement.

Specifications

• Model number: JKO-O2LJD3
• Detection principle: Galvanic battery type
• Alarm: Second step (arbitrary changes available), Intermittent electronic buzzer sound (80dB), red LED flashing x 2
• Alarm output: Relay no voltage 1c contact, Maximum load capacity/50mA, 30VDC
• Analog output: 4 - 20mA (FS)
• Power supply: AA alkaline dry cell x 4 (included for test) or AC adapter (included)
• Size: 82 x 38 x 145mm
• Weight: Body/190g, Sensor unit/140g
• With wall-mounted bracket
• Measurement range: 0 - 25.00%
• Resolution: 0.1

Package size

• Package size 205×245×80 mm 820 g
