Others 超小型連續旋轉伺服馬達 FS90R FEETECH-FS90R-V2

Features

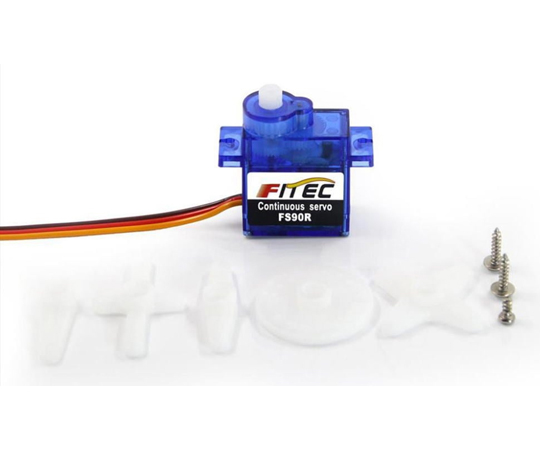

• Micro servo with continuous rotation specification of Micro Servo FS90 "FEETECH-FS90 C 2." Servo horn and screws are included.
• The position pulse of a standard RC servo is converted to a continuous rotational speed, and the stationary point is set to 1.5 ms with a dead bandwidth of ±20 μs.
• When the pulse width is greater than or equal to the stationary point, the speed increases as the pulse width increases. On the other hand, when the pulse width is less than the stationary point, the speed is clockwise and increases as the pulse width decreases.
• The position of the resting point can be adjusted by turning the potentiometer on the back with a small screwdriver.
• *Avoid using it in a stall as it may damage the motor and gears.

Specification

• Quiescent current * (6V): 6mA
• No-load speed * (6V): 100RPM
• No-load current * (6V): 130 mA
• Stall Torque (6V): 1.5 kg/cm
• Stall current (6V): 800 mA
• Quiescent current * (4.8V): 5 mA
• No-load speed * (4.8V): 80RPM
• No-load current * (4.8V): 110 mA
• Stall Torque (4.8V): 1.3 kg/cm
• Stall current (4.8V): 700 mA
• Length of lead wire: approximately 250 mm ±5 mm
• Dimensions: 22.5 x 12.1 x 22.7 mm
• Weight: 9 +/- 0.2 g
• * Average value of no-load operation

Package size

• 75x110x15mm
• 0.02kg
