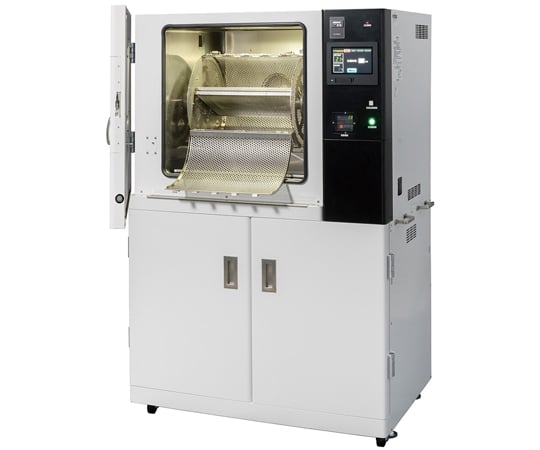

Yamato Scientific Co., Ltd. 過熱蒸氣式 R I 實驗動物乾燥減重裝置 AG530

Specification

• Method
• ▼ Drying: Superheated steam and superheated steam with water droplets
• ▼ Superheated steam generator: one superheated steam generator
• ▼ Pure Water Supply: max60L/h (0.5~1 L/min) Reverse Osmosis RO Membrane Type, Tank/20 L
• ▼ Maximum Discharge: max9L/h (60~150 mL/min)
• Performance
• ▼ Setting temperature range: 108~130°C
• ▼ Operating Humidity Range: 35~85%%%%RH
• ▼ Superheated steam control temperature (first process): 108~120°C
• ▼ Superheated Steam Control Temperature (Step 2): 120~130°C
• ▼ Setting time: 3~12h
• ▼ Mixer rotation speed: 2rpm
• ▼ Injection Nozzle: φ0.7 Straight Forward Nozzle
• Configuration
• ▼ Mixer Capacity: 50 L
• ▼ Insulation: Rock Wool
• ▼ Heater Generator: Far-Infrared Heater 116 V, 3 kW (0.5 kW x 6)
• ▼ Reheating in Heater Tank: Pipe Heater 115 V, 3.6 kW (1.2 kW x 3)
• ▼ Pure Water Tank: Resin, 20 L
• ▼ Waste Liquid Drainage Tank: SUS304, 35 L (With Cooling Mechanism from Tap Water)
• Controller

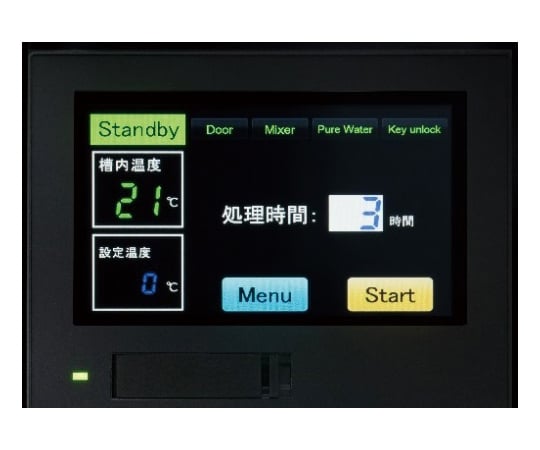

• ▼ Type: LCD Resistance Film Touch Panel + Lighting Switch
• ▼ Temperature Control: Temperature Control P.I.D. Control
• Inner Dimensions (Diameter x Width): φ380 x 460 mm
• External Dimensions (Width x Depth x Height): 1100 x 730 x 1570 mm
• Power capacity: three-phase 200 V 22 A, breaker capacity and installed power capacity 30 A. Power Cord (Round Terminal)
• Weight: 270 kg
• *The above specifications require a displacement of 0.6~1.0 m3/min.
