HOZAN TOOL INDUSTRIAL CO., LTD. 附表面電阻計校正證書 F-110-TA

Features

• We will create a certificate with the name of the purchaser, so you need the company name when you order.
• Highly functional Surface Resistance Meter capable of pass/fail judgment and data storage For maintaining and managing the quality of anti-static items

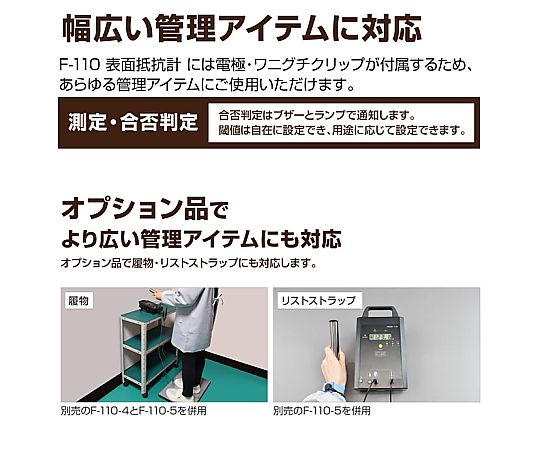

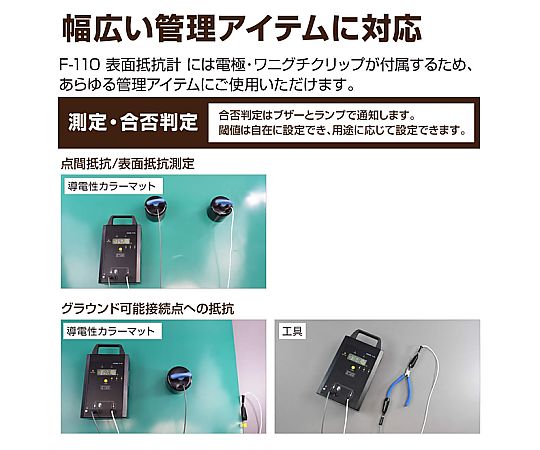

• It is possible to measure the resistance of static electricity countermeasure items according to RCJS/JIS/IEC/ANSI standards. The measurement range is applicable to a wide range of items from equipment (conductive color mats, etc.) to human bodies (wrist straps, etc.).
• With pass/fail judgment function (LED lighting/buzzer sound) that can freely Set the threshold value, it can be used according to the application such as in-house control value and standard value. Since it can be judged intuitively, it is also ideal for field workers.
• Measurement results can be saved to an SD card and output directly from the output terminal to a PC * 1.

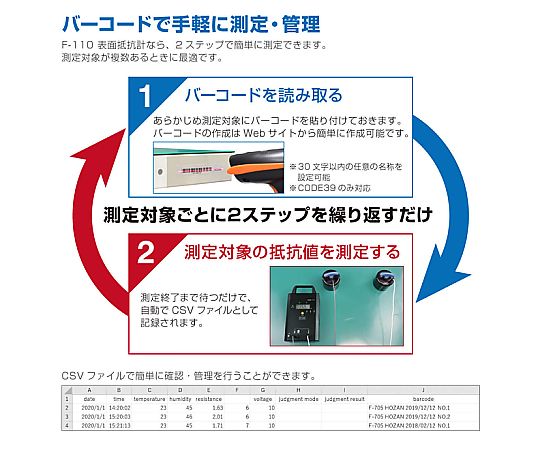

• Bar code information can also be added to measurement results by connecting a commercially available bar code reader * 2. The measurement target and measurement result can be linked, greatly reducing the work of site managers.
• Built-in thermo-hygrometer (not calibrable/reference value) is automatically added to the measurement result. Equipped with 2 types of measurement mode switching function. In the hold mode, the measured value is held after the measurement time specified by the standard (after 15 seconds) and automatically turned off after 5 seconds.
• *1. Serial communication system. A list of commands is available on the website. We do not provide software and connection cable for PC. Please prepare by yourself. *2. A bar code generation page is available on our website.

Specification

• ■Judgment function range: When the threshold is within the PASS range, the PASS lamp lights up (buzzer sounds). When the threshold is outside the PASS range, the FAIL lamp lights up (buzzer sounds off) [Fixed threshold 1 (wrist strap): PASS 7.50×10^5 Ω ? R ? 3.49×10^7 Ω] [Fixed Threshold 2 (Footwear): PASS 1.00×10^5 Ω ? R ? 9.99×10^7 Ω] [Flexible Threshold (Up to 3 Thresholds Can Be Stored): PASS (9.00×10^2 Ω~9.99×10^10 Ω) ? R ? (9.00×10^2 Ω~9.99×10^10 Ω)]
• ■Applied Voltage: 10 V (Fixed)/100 V (Fixed)/10 V/100 V (Automatic Switching) Automatic switching: When the object to be measured is 1.00×10^6 Ω or more ...100 V/When the object to be measured is less than 1.00×10^6 Ω ...10 V
• ■Continuous Use Time: Approx. 90 minutes

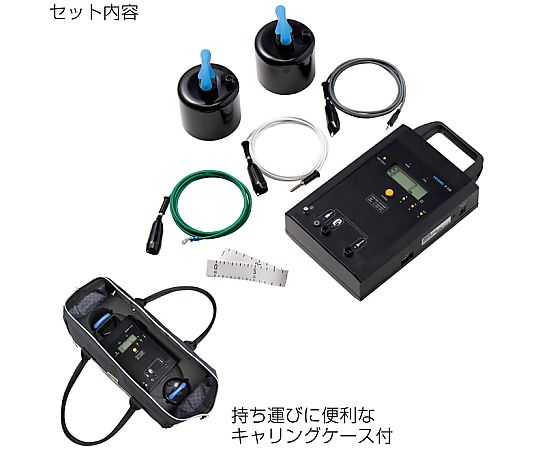

• ■Electrode x 2, Connection Cord (2 m) x 3, Alligator Clip x 3, Cloth Measure (40 cm), SD Card, AC Adapter (for Charging), With Carrying Case
• Remarks: With calibration certificate
• External Dimensions: Body: 135 (W) x 68 (H) x 236 (D) mm (Excluding Protrusion)/Electrode: 79mmφ x 110 mm (Conductive Pad: 63.5mmφ)/Carrying Case: 400 (W) x 200 (H) x 200 (D) mm
• Accuracy: ±10%%%%(±20%%%% for 1.00 x 10^11 Ω or more) * Reference RCJS-5-1 Equipment used in requirements acceptance test Accuracy: ±20%%%%
• Storage media: SD/SDHC/SDXC memory cards (up to 128GB)
• Weight: 6.4 kg[Body: 715 g, Electrode: 2.3 kg (1 Piece)]
• Measurement range: 9.00×10^2 Ω to 2.00×10^12 Ω
• Power: Built-in rechargeable battery (nickel metal hydride battery)
• Input: 1

Package size

• 250x455x270mm
• 7.1kg
