HOZAN TOOL INDUSTRIAL CO., LTD. 表面電阻檢測器 F-207

Features

• Daily inspection of surface resistance (point-to-point resistance) can be performed easily.

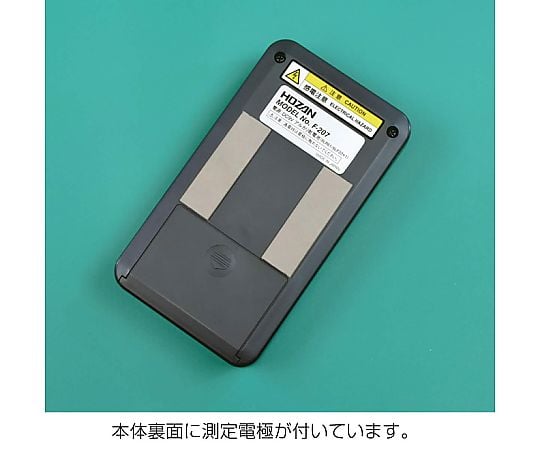

• A checker with built-in Electrodes that is convenient for managing the surface resistance of conductive color mats such as work surfaces and storage shelves.
• Simple check of point-to-point resistance against RCJS-5-1 can be performed.

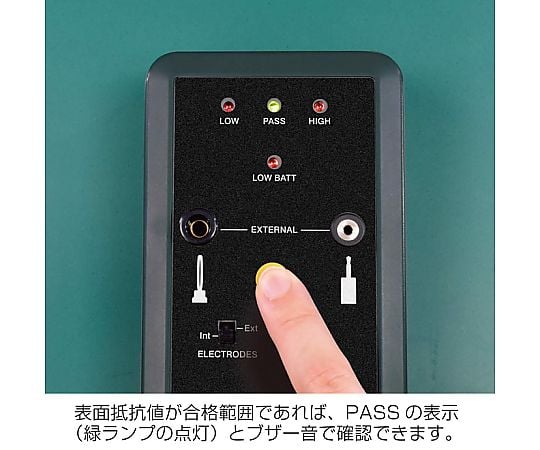

• Since the pass/fail judgment is possible without reading the measured value, daily inspection can be carried out easily.

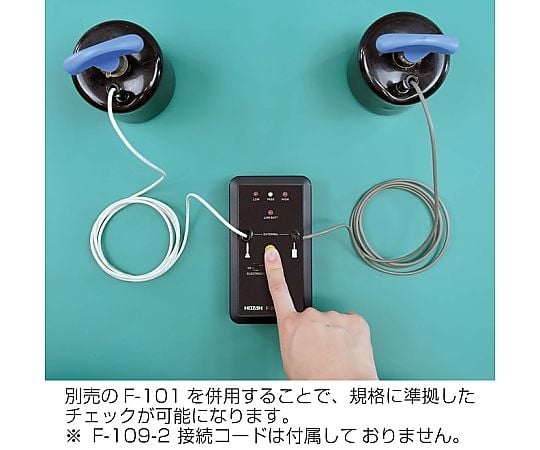

• By using the optional F-101, it is possible to check according to the standard.

Specification

• ■Display: (LOW) Rp<1×10^4 Ω/(PASS) 1×10^4 Ω≦Rp<1×10^10 Ω * The buzzer sounds when PASS is selected. /(HIGH)1×10^10Ω≦Rp
• ■Applied voltage: ・・・・・10 V when measured object is less than 1×10^6 Ω/・・・・・100 V when measured object is 1×10^6 Ω or more (automatically switched)
• External Dimensions: 76 (W) x 27 (H) x 135 (D) mm (Excluding Protrusions)
• Accuracy: ±10%%%%
• Life: Battery life: 1500 cycles or more
• Weight: 160 g (without batteries)
• Power supply: Multi-layer (6LR61/6LF22) battery x 1
• Input: 1

Package size

• 125x210x50mm
• 0.28kg
