Kyohritsu Electronic Industry Co., Ltd. 完整焊接練習套件 ROK-1705

Features

• An introductory electronics kit perfect for practicing soldering double-sided printed circuit boards.

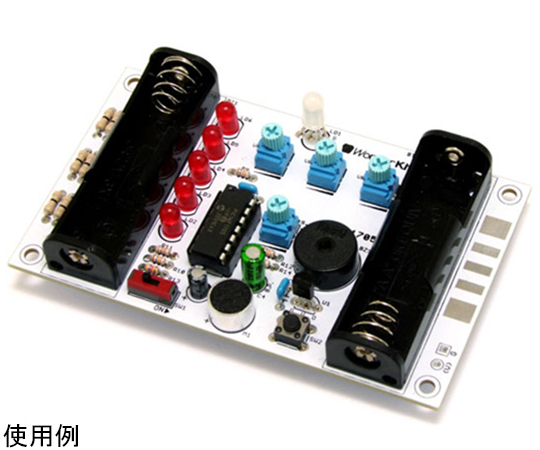

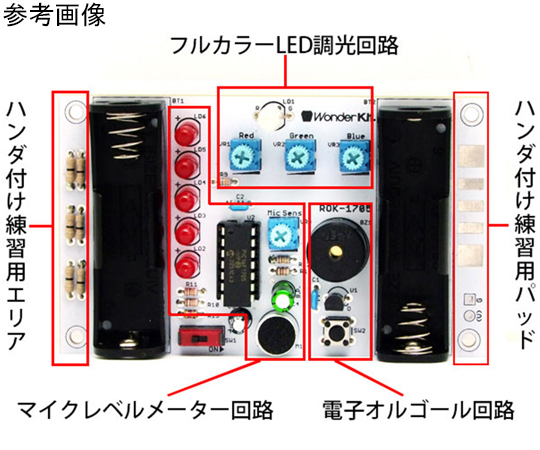

• Once assembled, it has three functions: a microphone level meter, an electronic music box, and a full-color LED dimmer.
• For those who are new to soldering, a free area independent of the main circuit and parts for practice are included.

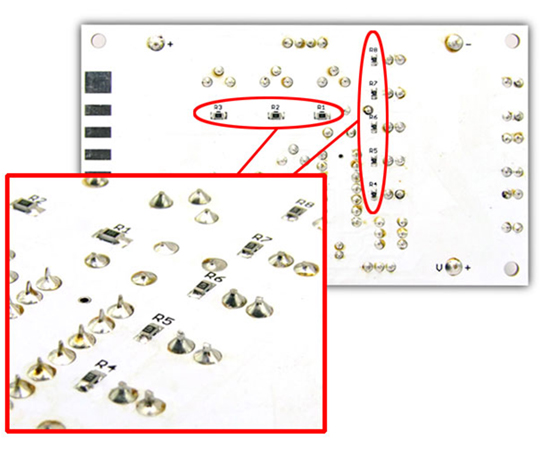

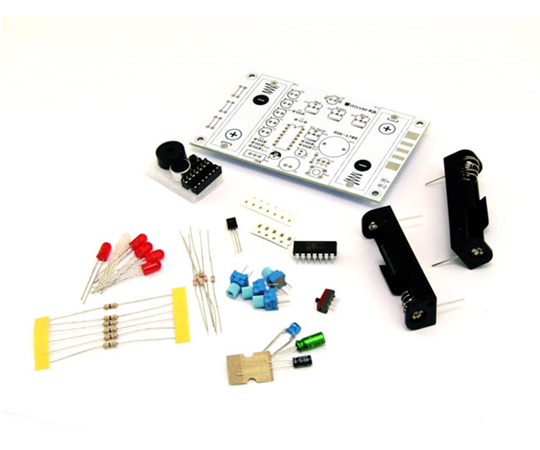

• You can experience soldering of various parts such as resistors, capacitors, LEDs, ICs, and soldering of chip parts.

Specification

• Power: 2 AA-size alkaline batteries (sold separately) 3.0 VDC (2.6 ~4.0 VDC)
• Current consumption: 60 mA maximum
• Function 1: Microphone Level Meter
• ▼ Input: condenser microphone (mounted on board)
• ▼ Level Display: 5 Red LEDs
• ▼ Microphone sensitivity adjustment: Adjust with semi-fixed resistance * Measurement and display are simple functions.
• Function 2: Electronic Music Box (Melody plays while button is held down)
• ▼ Output: Piezoelectric buzzer (mounted on board)
• Feature 3: Full color LED dimming
• ▼ LED: Full Color LED φ5mm, Dimming System: Red/Green/Blue Luminance can be adjusted with semi-fixed resistors for each color. * It is not possible to completely turn off the light.
• With free area and materials for practice

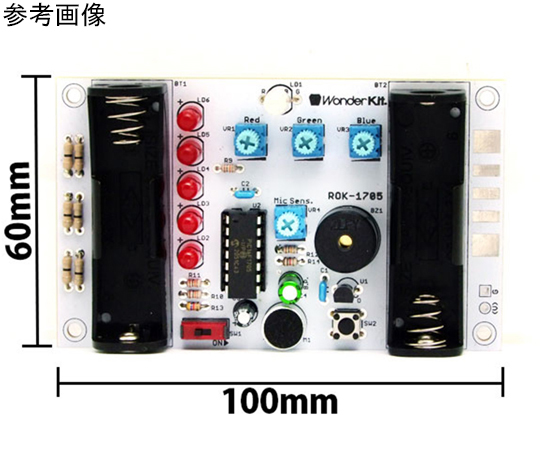

• Substrate Size: W100 x D60 x H17mm
• *Batteries are not included.
• *The appearance and specifications are subject to change without notice.

Package size

• 130x90x25mm
