AS ONE Corporation 非CFC冷卻水循環裝置 NF-300

Name: AS ONE Corporation Non-CFC cooling water circulation device NF-300
Price: 105958 TWD
Availability: InStock

商品包含多種型號及規格，請點選「立即選購規格」挑選

💡 重要通知：

因中東戰爭造成原物料波動影響，若訂單成立後進貨成本發生重大異動，我們將主動聯繫您協商處理。造成不便，敬請見諒。

付款方式

月結報帳 / 信用卡 / 銀行轉帳

運送方式

宅配快速到貨，滿 NT$ 999 元即享免運！

選購型號

Temperature range (°C): -10 to +30
Temperature Adjustment Accuracy ±2.0°C(Room Temperature 20°C/Maximum Circulation Volume/Power Supply 100 VAC 50/60Hz/Setting 5~30°C/At No Load)

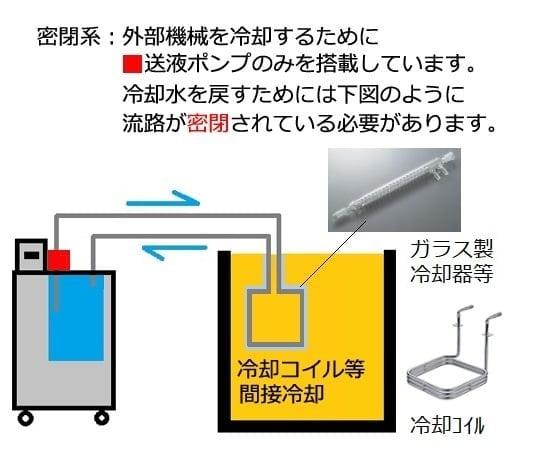

Circulation system: Closed system counter circulation
Type of solution used: fresh water, pure water, ethylene glycol, etc.
External Circulation Capacity (50/60Hz): Maximum Flow 12/12L/min, Maximum Pump Head 5.4/6.6 m (When a Single Pump Is Used)
Cooling capacity (at10): 50 Hz/320 W

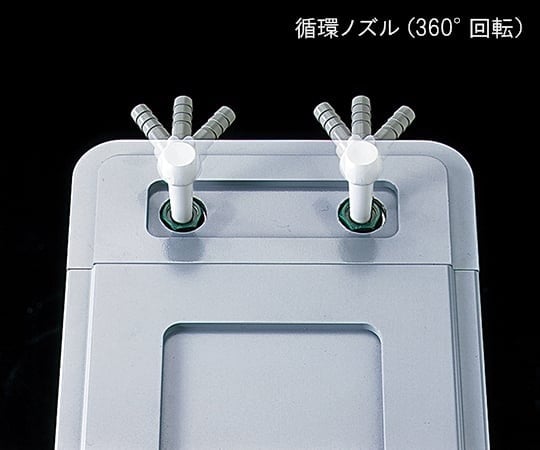

Circulation Nozzle Outer Diameter: φ 11 mm (Applicable Tube Inner Diameter φ 9 mm)
Liquid Tank: φ160 x H160mm Approx. 3 L
Coolant: R1234yf
Size: 218 x 430 x 563 mm
Power: 100 VAC 50/60Hz
Timer: 1 minute to 47 hours 59 minutes (1 minute increments)
Self-Diagnosis Function: Upper/Lower Temperature Abnormality Detection, Sensor Abnormality, Chiller Overload Relay, Chiller Protection Timer, Power Failure Detection, Control Temperature Abnormality, Memory Error
External Input/Output: External Temperature Sensor Input Terminal, Analog Output Terminal for Thermometer (1 ~5 VDC) Alarm Output Terminal (12 VDC ~17 VDC)
Weight: Approx. 27 kg
