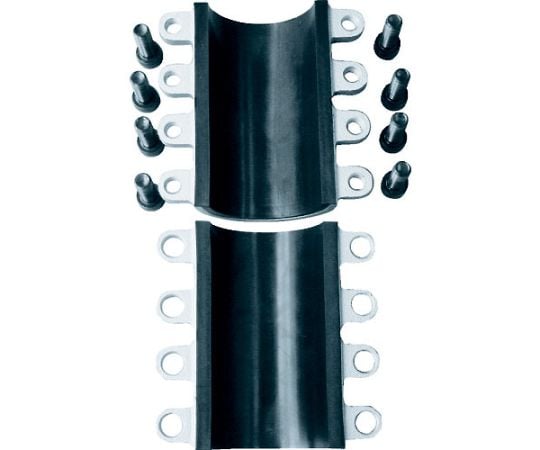

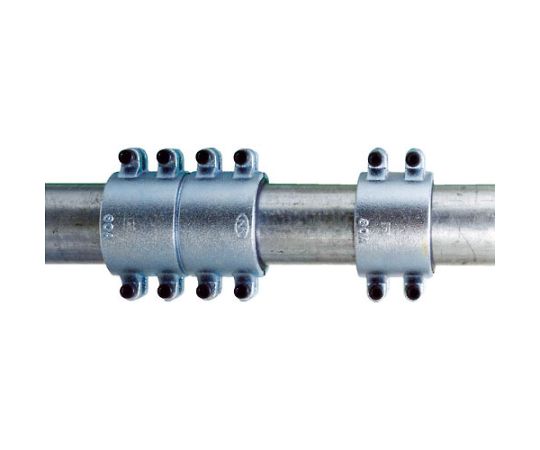

Kodama Industres Co., Ltd. 壓接端子 直管型 長尺寸 65A L65A

Features

• Since it can prevent leakage during operation without removing the contents of the pipe, there is no need to stop the operation of the equipment or remove air.
• The installation and tightening process is quite simple, just tighten the screws, and the process can be completed in 5 to 10 minutes.
• For emergency repair of hotels, condominiums, hospitals, factories, etc.
• For emergency repairs to water and oil leaks without stopping operation.
• Emergency repair of hotels, condominiums, hospitals, factories, etc. that cannot be stopped.

Specification

• Nominal Diameter: February 21
• Nominal Diameter (A): 65
• Nominal diameter (B): 2 1/2
• Fit hexagon wrench (mm): 10

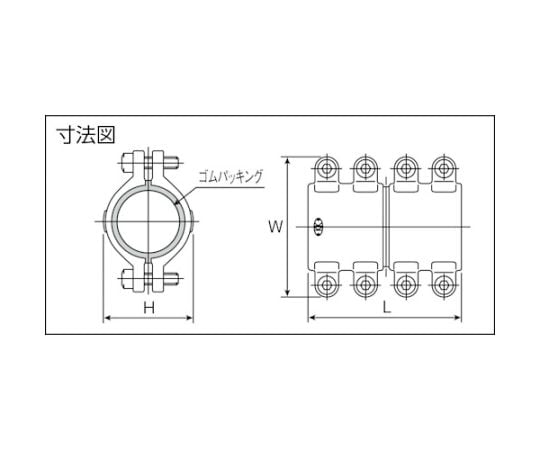

• Size (mm) L × W × H: 140 x 145 x 100
• Pressure pressure: 2 MPa
• Temperature range: 30 to 130 °C
• Pressure pressure: 2 Mpa
• Thermal temperature: 30 to 130 °C
• Material / Finish: Outer Fittings: Ductile cast iron, internal rubber seal: special heat resistant mixture, high nitrile rubber
• Set Content / Accessories: 65 A or higher with hexagonal wrench and pipe handle
• Quantity: 1
• Code number: 828 -6832

Package size

• 163x161x128mm
• 3.18kg
