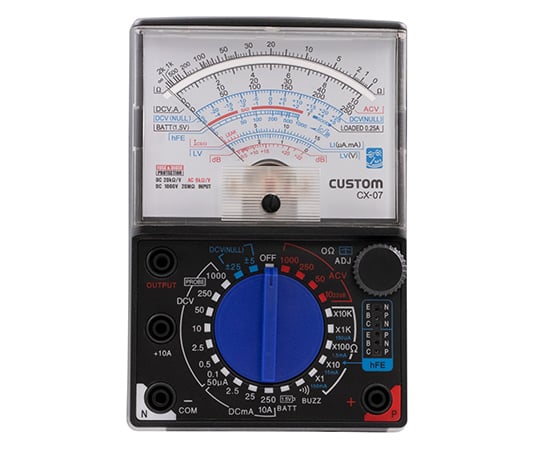

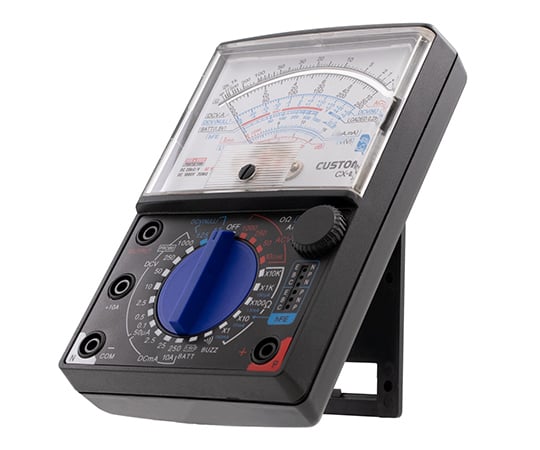

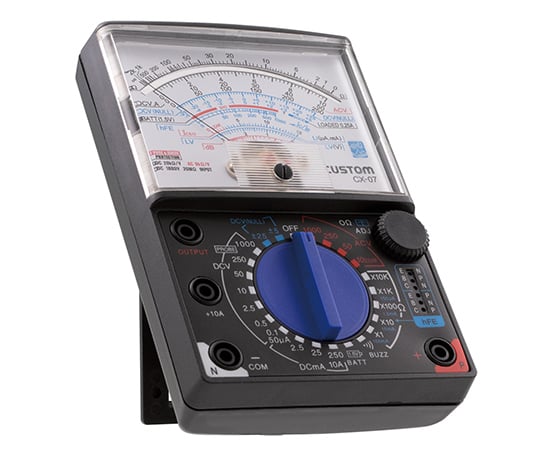

CUSTOM corporation 類比測試儀 CX-07

Features

• DC voltage/current, AC voltage, resistance measurement
• Multifunctional type capable of dB (decibel) measurement and transistor (hFE) measurement
• With battery check function and continuity check function
• Uses gold-plated test lead.
• For voltage and resistance measurement in factories and various work sites.
• For Professionals and Engineers
• Compatible Users: Tool Industry, Automotive Industry, Measurement Industry, Others

Specification

• AC Voltage (ACV): Range/10/50/250/1000V, Tolerance/Within ±4%%%% FS, Within ±5%%%% FS (1000 V), Input Impedance/9 kΩ/V
• DC Voltage (DCV): Range/0.1/0.5/2.5/10/50/250/1000V, Tolerance/Within ±3%%%% FS, Within ±5%%%% FS (1000 V), Input Impedance/20 kΩ/V
• DC Current (DCA): Range/50 μA/2.5 mA/25 mA/250 mA/10 A, Tolerance/Within ±3%%%% FS/Within ±5%%%% FS (10 A)
• Resistance Value (Ω): Range/2 kΩ (×1)/20 kΩ (×10)/200 kΩ (×100)/2 MΩ (×1k)/20 MΩ (×10k), Tolerance/Within ±3%%%% of Scale Length
• Battery Check: Range/1.5 V
• Decibel (dB): Range/-10 to +22dB, Tolerance/±4%%%% FS
• Collector Cutoff Current (Iceo)/LI Diode Forward Current (IF): Range/150 μA/1.5 mA/15 mA/150 mA, Tolerance/±5%%%% of Scale Length
• LV diode forward voltage (VF): range/3~0 V, tolerance/±5%%%% of scale length
• DC Amplification Factor (hFE): Range/0~1000, Tolerance/±3%%%% of Scale Length
• Power: 2 AA batteries, 1 9V square battery
• Dimensions: Approx. W100 x H150 x D40mm
• Weight: about 295 g (including battery)

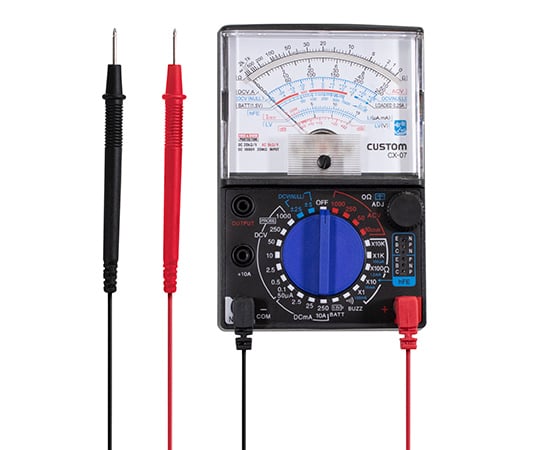

• Accessories: Test lead, Instruction Manual (with warranty)

Package size

• 225x155x45mm
• 0.4kg
