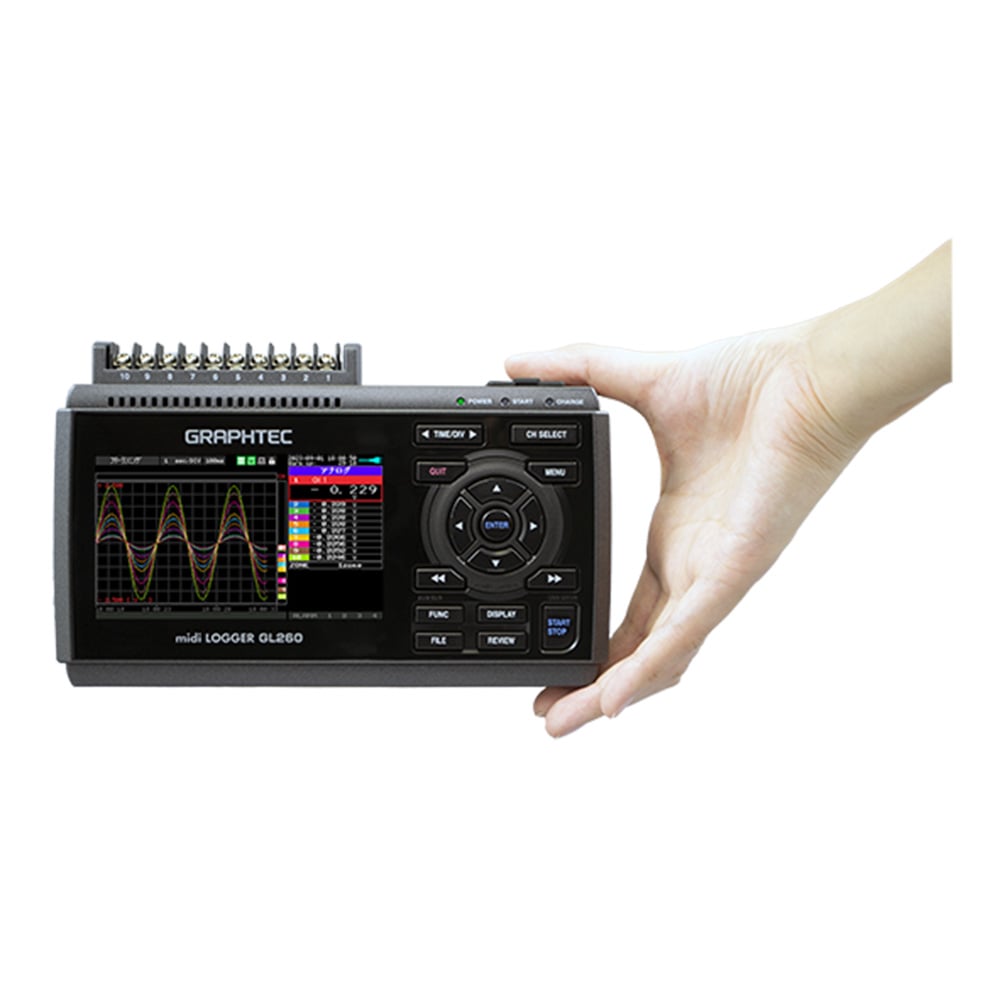

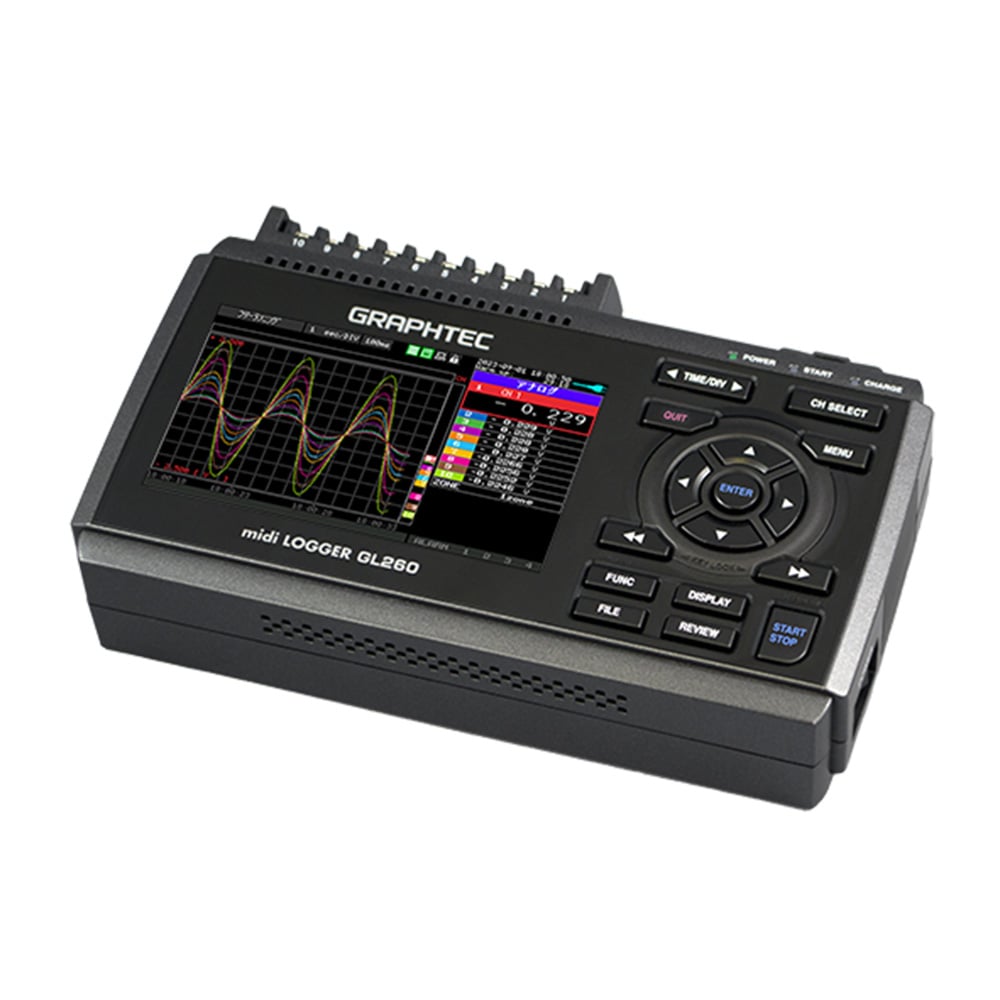

GRAPHTEC Corporation 資料記錄器 GL260

Features

• A total of 10 channels of data can be acquired for voltage, temperature, and humidity (only 1 channel for humidity).

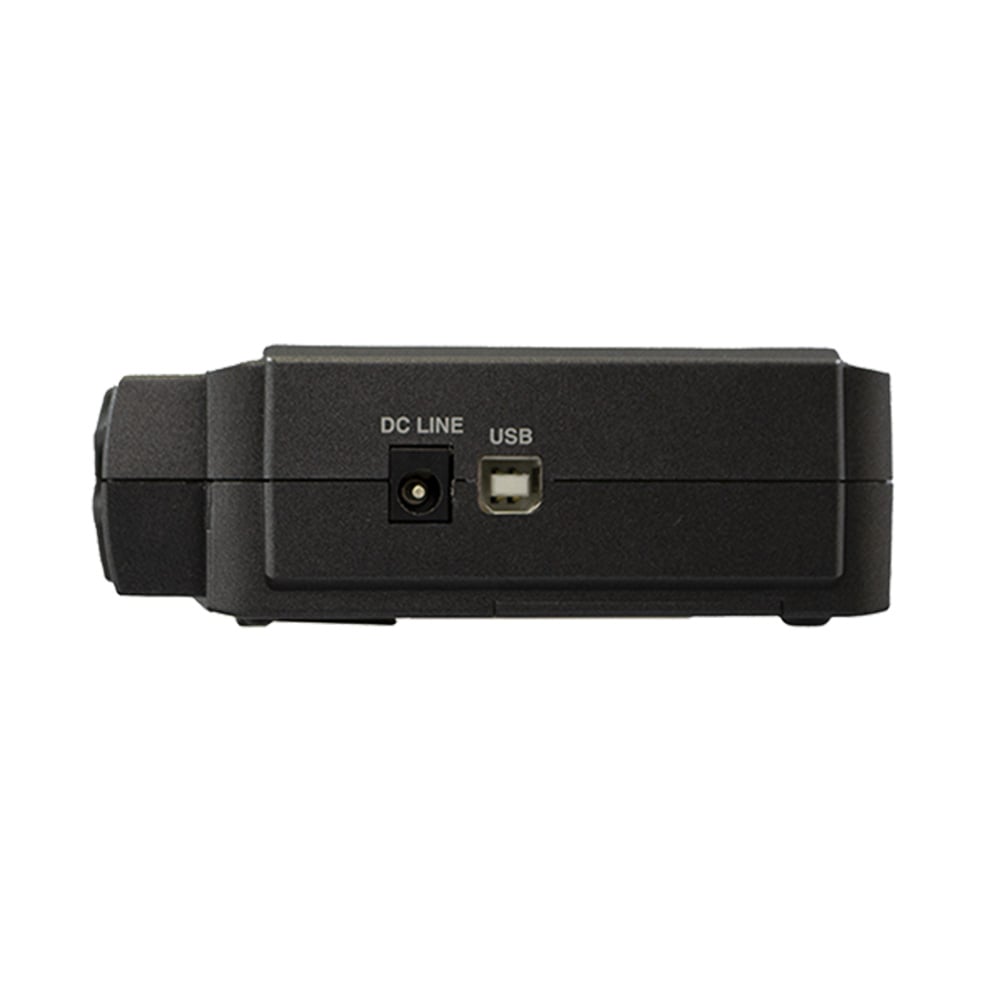

• Can be connected to a PC with a USB interface.
• Wireless LAN unit (B-568) can be installed as an option. (Cannot be installed with optional SD memory card)

Specification

• Size (mm): Approx. 188 x 117 x 42
• Weight (g): Approx. 500
• Measurement Range: Voltage/20, 50, 100, 200, 500 mV, 1, 2, 5, 10, 20, 50 V, 100 V, 1-5 V/F.S., Temperature/Thermocouple K, T, etc., Humidity/0~100%%%% (Option: B-530 required)

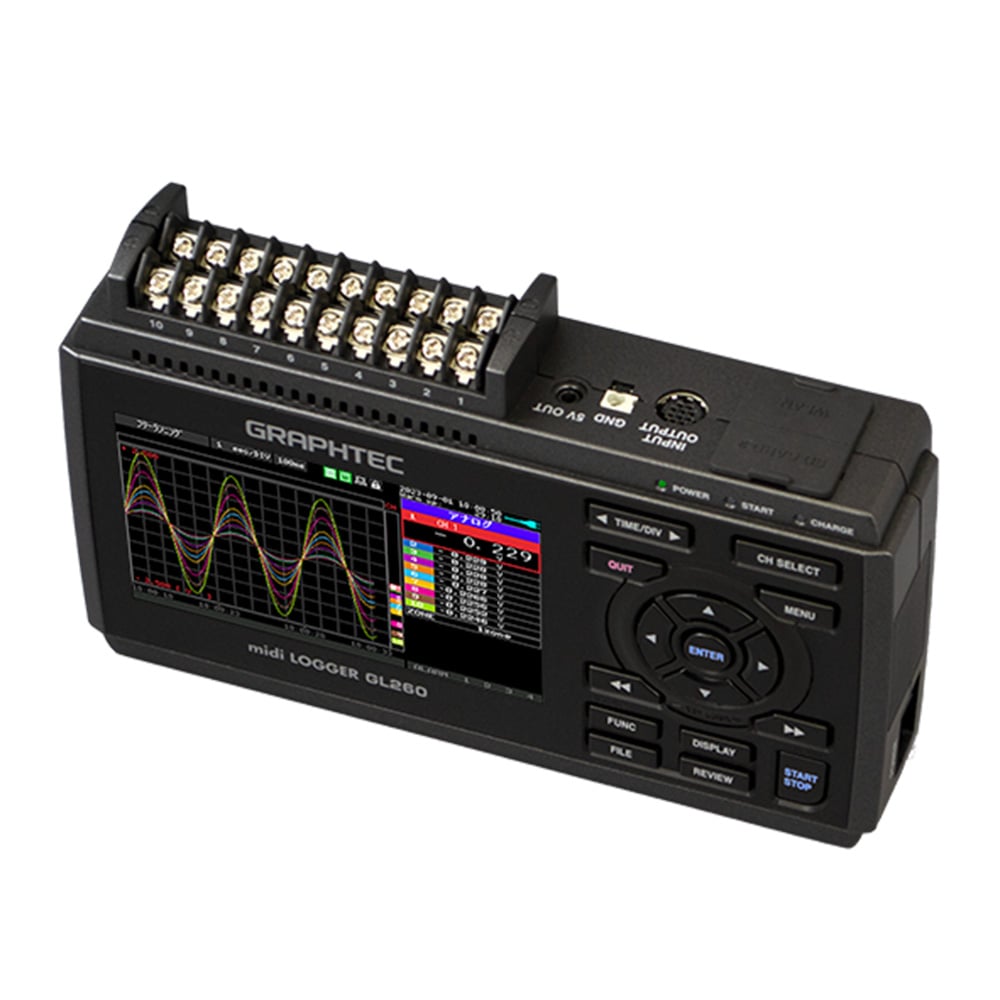

• Input channels: 10 channels, M3 threaded jacks, logic input 4 channels or pulse input 4 channels * GL input/output cable (B-513) is required.
• Sampling period: 10 ms to 1h(10~50 ms is voltage only, channel limit depending on sampling period)
• all CH insulation inputs
• Internal memory: SD1 approx. 8GB (internal fixed) * Up to 2GB per file
• Displays: analog waveform, past data during measurement, digital value
• Supported operating systems: Windows11/10
• Power: 100~240 VAC 50/60Hz (AC adapter included) or 8.5~24 VDC input (optional: B-514 required)
• *Battery pack (B-573) is optional.

Package size

• 300x200x150mm
• 1.42kg
