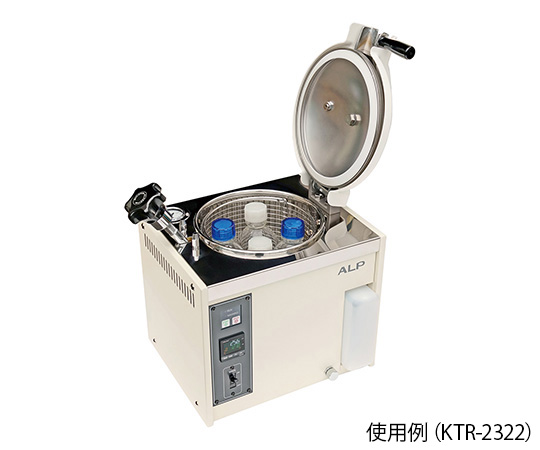

ALP Co., Ltd. 小型高壓蒸汽滅菌50公升附出貨前檢驗文件 KTR-3065

Features

• The air vent type with temperature detection and time control solenoid valve ensures sterilization according to load.
• After sterilization, cool down naturally, open the lid, lower the temperature to safety, and then turn off the operation lamp.
• It also has a forced exhaust valve.

Specification

• External Dimensions (mm): 450 x 360 x 970
• Can Capacity: 50 L
• Can Body Size (mm): Φ300 x 640
• Operating Temperature Range: 110~125°C (Setting/0.1°C Interval)
• Operating Pressure Range: 0~0.16 MPa
• Timer: 1 sec ~99 min 59 sec (Digital temperature control)
• Can Body/Lid/Surface Plate Material: SUS304, Lid Packing: Silicone Rubber Molded Product
• Outer Plate Material: Steel Plate/Melamine Baked Coating
• Anti-Depletion Device: Heat Sensing Hydraulic Switch
• Pressure relief device: Cut-off method with pressure sensing sensor (Heater power off, alarm buzzer, red lamp lights)
• Safety Valve: Stainless Spring System Blow Pressure: 0.18 MPa
• Breaker: Overcurrent breaker (ground fault breaker: optional)
• Heater: 1.9 kW
• Power: 100 VAC 50/60Hz
• Power: 19 A
• Weight: 48 kg
• Attached Stainless Steel Net Basket: φ270 x 300 mm x 2
• Attached Exhaust Drain Receiving Tank: Poly Tank x 1
• *This product is not a medical device.
