Sunhayato Corp. 通用基板 單面紙質酚醛 72 x 47 mm 適用於 DIP-IC 的接腳佈局 ICB-88

Features

• It is the same size as the so-called "C board."
• The pattern is easy-to-use dots.
• Silk letters of "numbers" and "alphabets" are printed on the part surface, making the hole position easy to understand and recommended for beginners of electronic work.
• The material is commonly called "bake plate" and is the most basic substrate material.
• Mounting hole positions may differ from other companies' counterparts of the same size.
• Although it is a little expensive, the quality of the domestic representative manufacturer has been supported for a long time because it is easy to solder with little warping and distortion.

Specification

• Material: Single-sided paper phenol

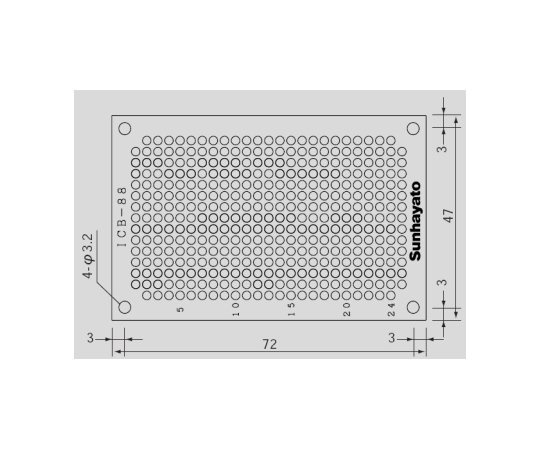

• Dimensions: 47 mm x 72 mm
• Plate thickness: 1.6 t
• Pattern: 2.54 mm Pitch IC Pattern Hole Diameter 1.0φ
• Notes:

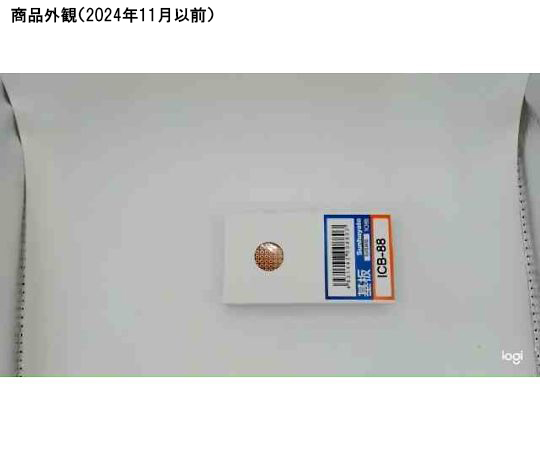

Package size

• 55x95x25mm
• 0.08kg
