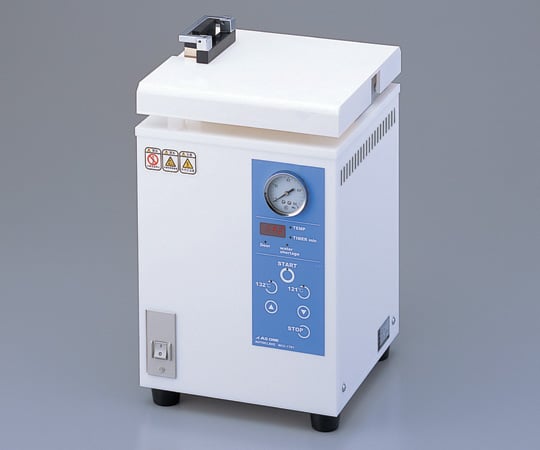

AS ONE Corporation 科學高壓滅菌鍋 (4公升) 緊湊尺寸 附出貨前檢驗文件 NCC-1701

Features

• Small autoclave suitable for research institutions.
• Sterilization is performed at two settings of 132°C and 121°C.
• Continuous sterilization is possible in a short time.
• Since it is compact size, it does not take much space and is suitable for small amount sterilization.
• A semi-automatic low-cost model equipped with microcomputer control.
• The timer can be set for 20 to 99 minutes at 121°C and 5 to 99 minutes at 132°C.

Specification

• Temperature Setting (°C): 121°C/132°C
• External Dimensions (mm): 250 x 250 x 426
• Can Capacity: Approx. 4 L
• Can Size: φ150 x 220 mm
• Sterilization Pressure: (121°C) 0.1 MPa, (132°C) 0.2 MPa
• Timer Settings: (121°C) 20 to 99 minutes, (132°C) 5 to 99 minutes
• Pressure Gauge: Bourdon Tube Type, 0~0.4 MPa
• Control system: microcomputer control system
• Safety Device: Empty Heating Prevention Device, Safety Valve, Overcurrent Protection Device, Leakage Protection, Door Lock Detection, Excess Temperature Rise Protection
• Material: Body Exterior/Steel (Baked Paint), Can Body/Stainless Steel (SUS304)
• Power: 100 VAC 50/60Hz 500 W
• Weight: Approx. 14 kg
• Accessories: Net Basket (φ130 x 200 mm), Shelf Board, Drain Tube (2 m)
• Sterilization Class: Class N Equivalent
• *This product is not a medical device. Please use it for research and development purposes.
• *Cannot be used for sterilization of medical instruments, etc.
• Model Number: NCC-1701
