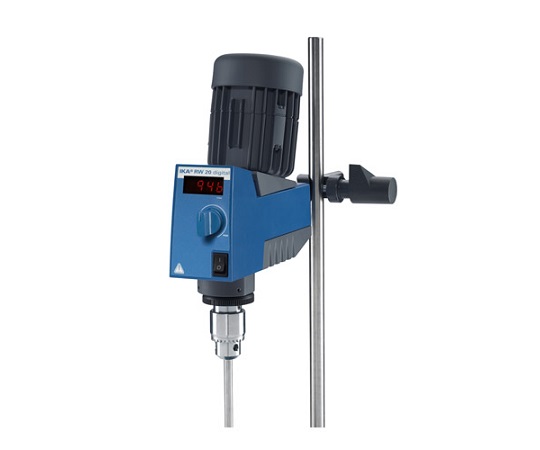

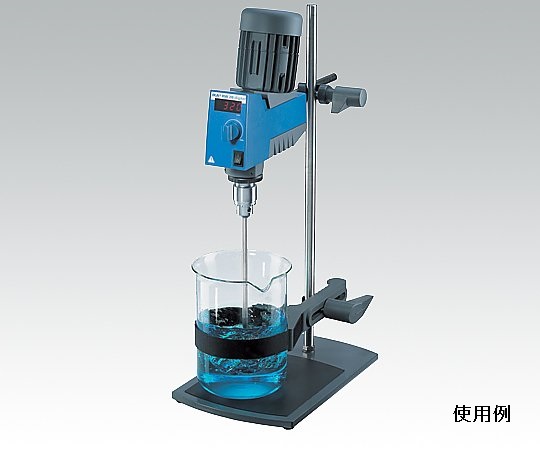

IKA 機械控制攪拌器附出貨前檢驗文件 RW20digital

Features

• Since the shaft penetrates the main body, the height of the stirring blade can be adjusted even after fixing to the stand.
• The rotation speed can be switched in 2 levels, and the digital display is easy to see.

Specification

• Speed Range: 50 Hz/60~500rpm (Range I)/240~2000rpm (Range II), 60 Hz/72~600rpm (Range I)/288~2400rpm (Range II)
• Maximum torque: 150 N/cm
• Stirring Capacity (H2O): 20 L
• Viscosity range: 10,000 mPas
• Support Arm: φ13 mm, Length 160 mm
• Chuck Tightening Range: 0.5~10 mm
• Motor input/output: 35/70W
• Power: 100~115 VAC 50/60Hz
• Power Cord Length: 1.8 m
• Size: 88 x 212 x 294 mm
• Weight: 3.1 kg
• *Stand, boss head and stirring blades are not included.
• Code: 0025003596
• Inspection item: Actual measured speed (gear I display accuracy ±30rpm)
• Stand-compatible models
• ▼ R 1825, R 1826, R 1827 (Compatible Boss Head Clamp: R 182)
• ▼ R 2722, R 2723(Supported Boss Head Clamps: R 270, R 271)
• Stirring Blade Compatible Models: R 1342 (1-7327-01), R 1381 (1-3152-11), R 1382 (1-3152-07), R 1389 (61-0005-43), R 1311 (61-0005-36), R 1312 (1-7327-02), R 1352 (1-3152-04), R 1303 (61-0005-62), R 1330 (1-3152-09), R 3000.1 (63-1288-95), R 3001.1 (63-1288-96), R 3003 (63-1288-97), R 3003.1 (63-1288-98), R 3004 (63-1289-01), R 3004.1 (63-1289-02), R 3004.2 (63-1289-03), R 1300 (1-3152-01)
