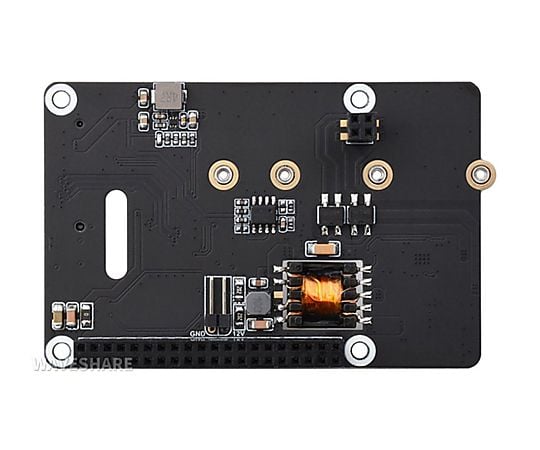

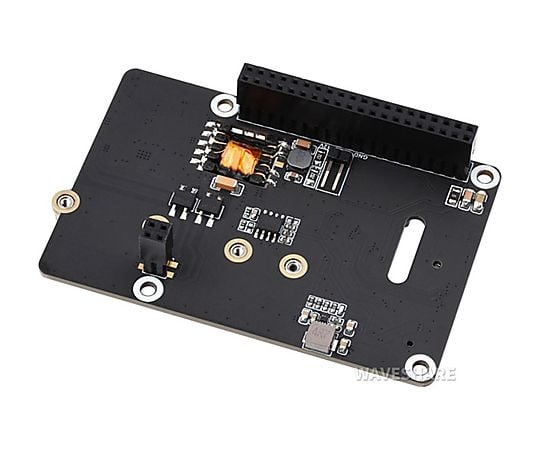

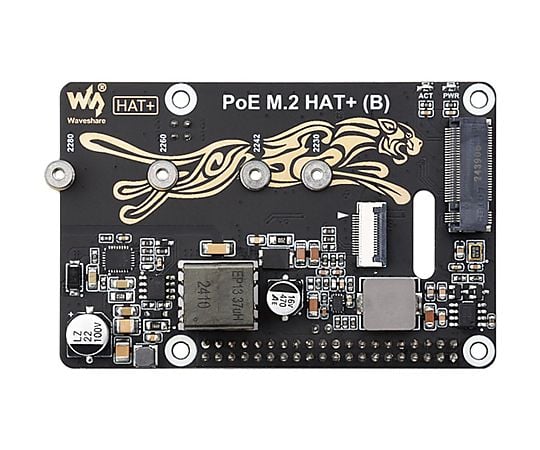

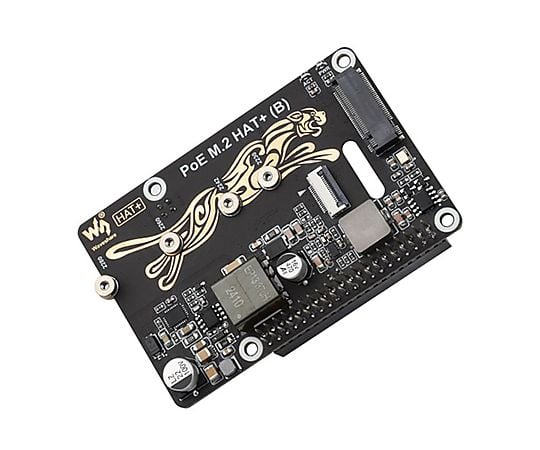

PoE/PCIe-M.2 SSD 轉換 HAT+ 適用於 Raspberry Pi 5 29320

Features

• An adapter for Raspberry Pi 5 that combines PoE (IEEE 802.3af/at) and PCIe-M. 2 conversion.
• Supports 2230/2242/2260/2280 M.2 NVMe hard drives, supports Raspberry Pi SSD boot
• Standard Raspberry Pi 40 pin GPIO expansion header
• PoE support (IEEE 802.3af/at)
• fully isolated switching power supply
• NVMe protocol M.2 interface support
• PCI-E x1 Gen2/Gen3 mode
• Raspberry Pi 5 (not Raspberry Pi 3/4)
• M. 2 hard drives available in 2230, 2242, 2260 and 2280 sizes
• With activity indicator LED (PWR, ACT)
• Fast read/write speeds

Specification

• PoE power input: 37~57 V DC input
• Power Output
• ▼ PoE-GPIO pin: 5 V 4. 5 A
• ▼ PoE-2P pins: 12 V 2 A maximum
• Network standards: IEEE 802.3af/at PoE support
• Dimensions: 56.0 x 85.0 mm
