Charles Ischi AG IPC.line(選配功能) IPC.Line Options

Touch Screen
The touch screen is an ideal addition to our tried and tested tablet testing systems. Switching is very easy, as the interface is modeled on the familiar appearance.

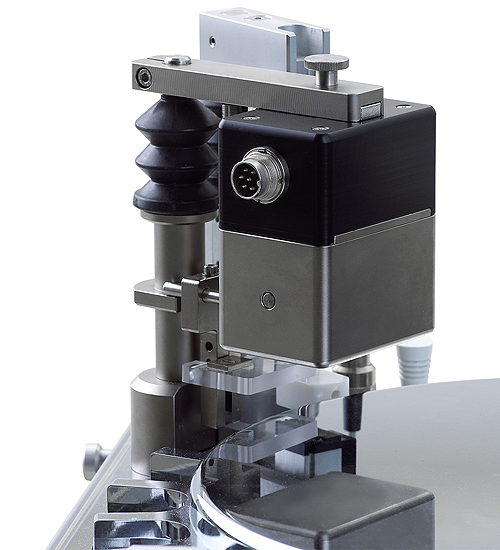

OZB (Oblong Centering Unit)
The Oblong Centering Unit (OZB) is available as an optional module. The centering unit is installed above the hardness measuring station. Products with longer shapes, such as oblong tablets, are accurately positioned and guided without contact during the hardness test.

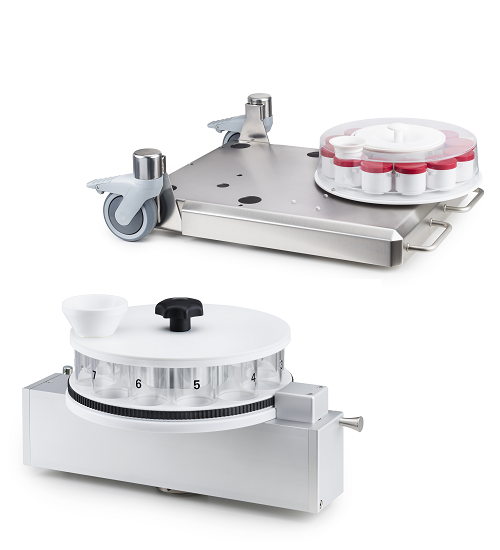

Feeder, Collector & Sorting Diverter
Using the sample feeder - no need to start each test procedure individually. The additional sample collector enables tested tablets to be stored separately. The sample feeder and sample collector are available in three sizes - with 12, 24 and 48 stations.

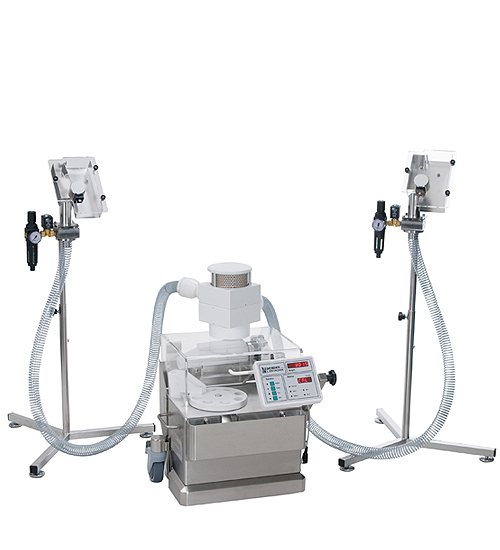

ATS - Air Conveyor System
The ATS air conveying system, tablets are sampled directly from the press and transported to the corresponding testing device through a hose - even across large distances and to other rooms.
Sampling diverter
Use the sampling diverter to monitor production autonomously on older tablet presses or those that are not fully automated. Sampling is controlled by PH21 software and is not linked to the press.
Measuring range extension
he measuring range extension for the hardness test station is used for particularly hard or soft tablets. For IPC.line, the load cells can be replaced at a later stage and adjusted to the new products.
Transportation equipment
Practical stainless steel transportation equipment with four casters - two lockable and two rotatable.
