EKSPLA NL740系列雷射器

The main feature of NL740 series is the output of ultra-stable tunable duration (2 – 10 ns) narrow bandwidth nanosecond pulses based on temporally driven CW diode laser seeder and amplification stages.

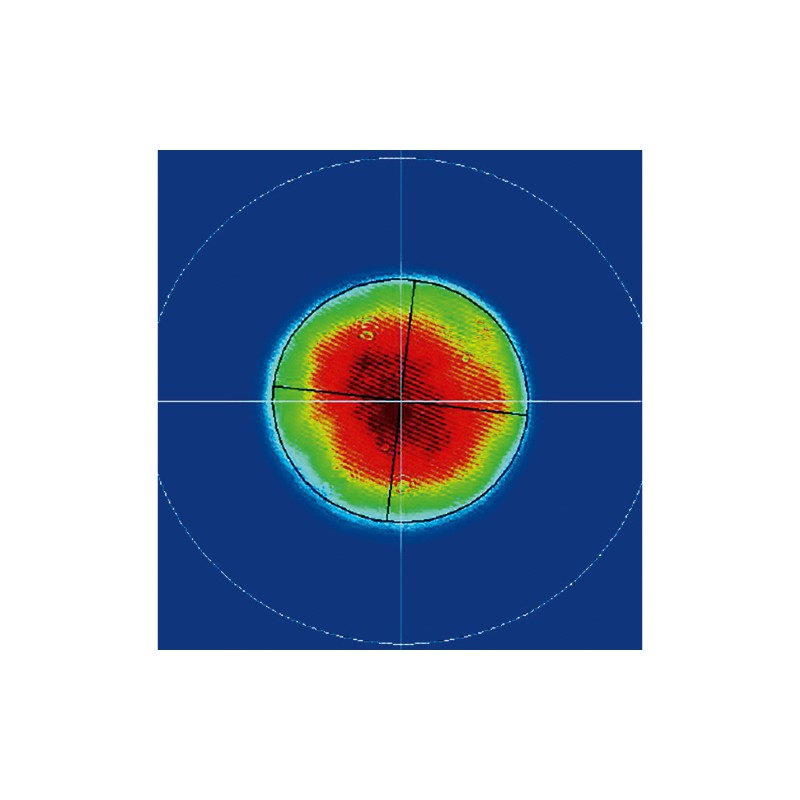

Start of the system is the single mode DFB laser with temporal output power modulator. Then light is amplified in diode pumped regenerative amplifier in order to reach energy sufficient to amplify in double pass diode pumped amplifiers. Power amplifier is a chain of double pass amplifiers where pulse is amplified up to required energy. Before amplification spatial beam shaping is employed in order to get flat top shape at the output. The harmonic generators are based on angle tuned nonlinear crystals placed in a heater.

FEATURE
Excellent temporal and spatial output mode stability
Up to 100 mJ output energy
Up to 100 Hz repetition rate
2 – 10 ns pulse duration
1064, 532 nm or 355 nm output wavelength
Fibre front end output amplified in diode pumped regenerative amplifier
RELATED APPLICATIONS
Metrology
Front end for power amplifiers
Ti: Sapphire pumping
Laser peening – material hardening by laser-induced shock wave
Plasma and shock physics
