LIGHTMACHINERY IMPACT 4000系列CO2雷射器

The Impact-4000 Series lasers are based on LightMachinery’s industrially-proven Impact-2000 TEA CO2 lasers, but modified with thyratron switching for ultra-short pulse duration (~100 ns) and low jitter operation as is required in many scientific and some industrial applications.

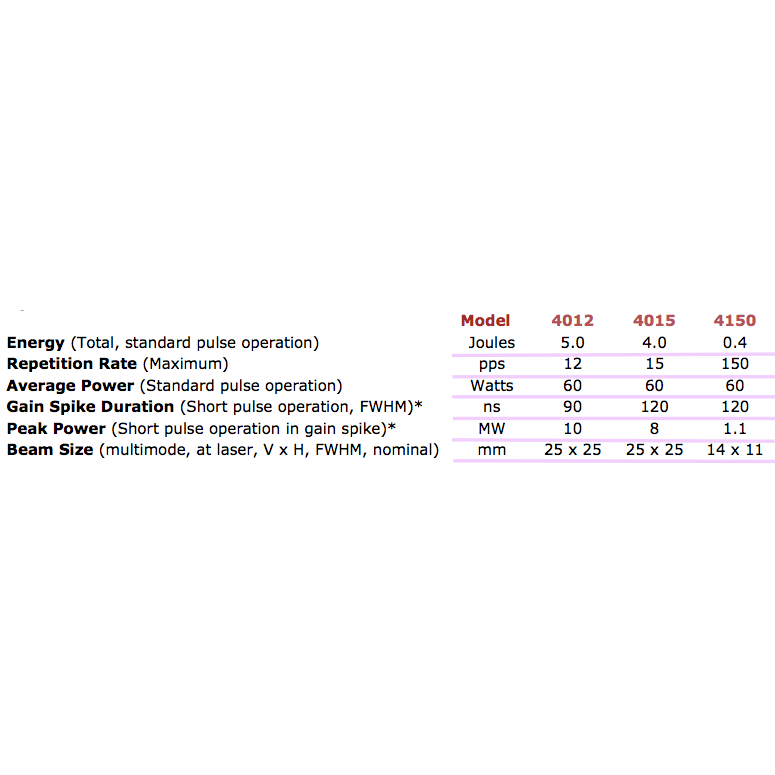

Various models offer choices of energy and repetition rates from 12 pps to 150 pps.

Standard options available with Impact-4000 Series lasers include:

Wavelength tuning over the full range of CO2 laser lines
Single transverse-mode (TEMoo) operation
Single longitudinal-mode (SLM) operation)
Multi-Module and MOPA configurations
Impact-4000 Series lasers can be supplied in a range of standard multi-module oscillators and master-oscillator / power-amplifier (MOPA) configurations.

The beam parameters (divergence, linewidth, mode structure, range of wavelength tuning, etc.) are mainly defined by the Master Oscillator, and the final energy is mainly defined by the number of Power Amplifier modules.

RELATED APPLICATIONS
Plasma Diagnostics
Laser Photochemistry
Optical DamageStudies
Non-Destructive Testing / Laser Ultrasound
Laser Propulsionand Particle Acceleration
Material Ablation & Surface Removal

Average Power(W): 60W
