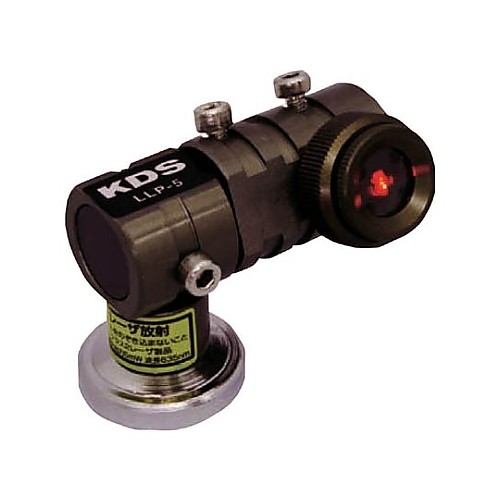

MURATEC-KDS 線條雷射投射機5 LLP-5 LLP-5

Feature

• Use the laser to sharpen the guidelines where they cannot be marked.
• With 3 rotating parts, it is possible to irradiate the line in any direction of 360 degrees, including up and down, left and right.
• Since the base is magnetic, it can be easily attached.
• As a mark for cutting stone boards and wood.
• As a positioning guide when arranging materials.
• For position display during machine installation.
• For the line when mounted on an incline (diagonal).

Specifications

• Irradiation angle (°): 130
• Size (mm): 62x57x32
• Mass (G): 138
• Light source: 635 n m Red semiconductor laser
• light Output: 5 mw or less
• line system: ± 1mm/5 m (linearity)
• adjustment range: 360 ° Up or down, Left and right All round for fine adjustable
• Work (M): up to 10 (working environment by different)
• operation hour: approx. 5000 hour
• operation Temperature: -5 to 45
• Application: gypsum board and Wood such as cutting when the landmark. material to align when alignment Guide. machine installation during Position Display. inclined (diagonally) installed during line.
• Production country: China
• Weight: 138g
• Set content: AC Adapters, mounting Microplate & Tray, Haxagonal wrench
• * Laser class 2 (beam to look not)
• Manufacturer's model number: LLP5
• CODE No.: 363-4531

Package size

• Package size 80×70×130 mm 320 g
