Digital Mass Flow Controller (Display setter integrated type) 500 SCCM H2

Features

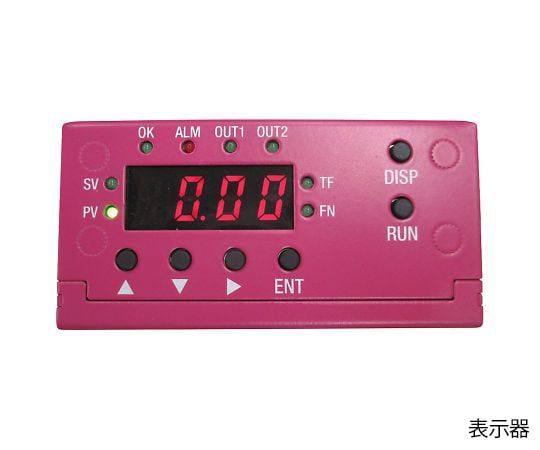

• It has a display setting function and can be set and controlled by the unit only.
• The driving power supply is a 24 VDC single power supply (AC adapter available).
• Digital communication: Equipped with RS 485 communication function.
• It is equipped with an accumulation function and a flow rate abnormal upper and lower limit alarm function.

Specification

• Full-Scale flow rate: 500 SCCM
• Compatible Gas: H2
• flow rate setting: Main Unit Display Configurator/Event Output Switching, Digital/RS 485, Analog/0 to 5 VDC/4.3 to 20 mA
• flow rate Accuracy : ± 1% FS (Accuracy Assurance Range 15 to 35 ° C)
• Response time: < 2 sec
• Controlled flow rate Range: 2 to 100% FS
• flow rate output signal: 7-segment LED Digital/RS 485, Analog/0 to 5 VDC/4 to 20 mA
• Valve Type: NC (normal close)
• Reproducibility: ± 0.2% FS
• capacity to resist pressure : 1 MPa
• External Leak: 1 x 10 ^ -7 Pa ? m3/secHe
• Gas Contact Part: SUS316, PTFE, Fluororubber
• Sealing Part material: Fluorine Rubber

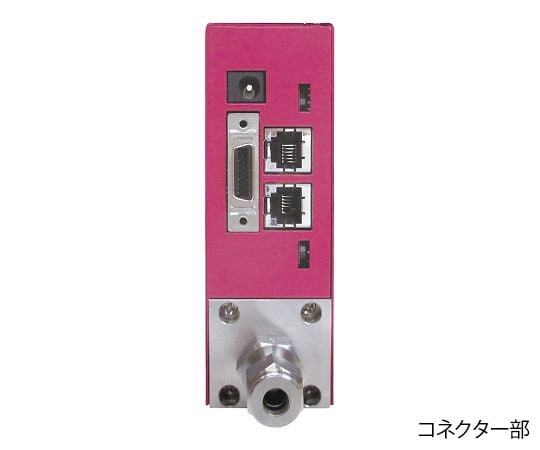

• Standard connected fittings: 1/4 inSWL (equivalent goods)
• Guaranteed Service Temperature: 5 to 50 ° C
• Supply power supply voltage/consumption current: 24 VDC/500 mA or more
• Communication type: Digital/RS 485, Analog/0 to 5 VDC/4 to 20 mA
• Size: 127 x 38 x 100 mm
• *When ordering, please specify the gas in the gas code table.

Package size

• 200x140x65mm
• 3kg
