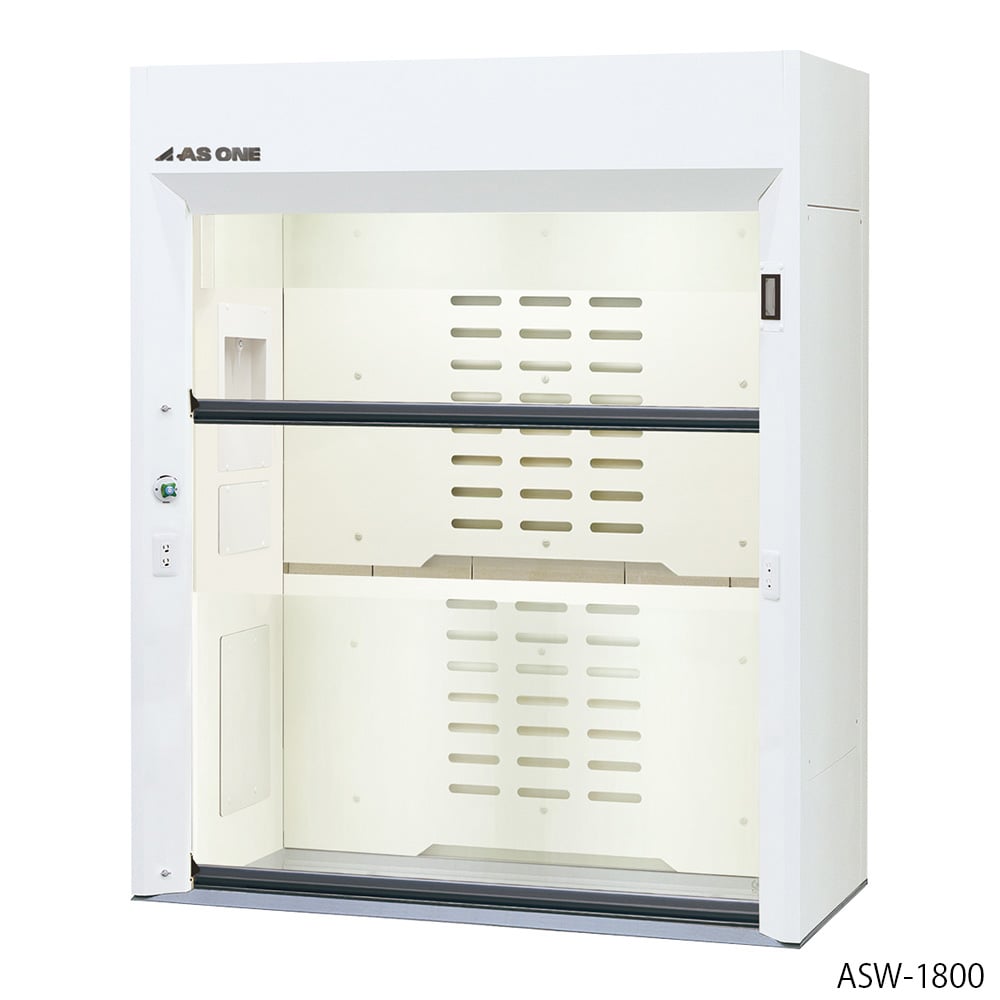

Fume Hood (Walk-in Type) Deep 2400 x 980 x 2250 mm

Features

• Since the effective height inside the hood is 2035 mm from the floor surface, it is suitable for putting large equipment inside the hood or assembling large reaction kilns, distillation extraction equipment, etc.
• For Acid/Alkali
• For Organic

Specification

• specifications: deep
• External Dimensions (mm): 2400 x 980 x 2250
• Inner Dimensions (mm): 2150 x 740 x 2035
• Weight (approx. kg): 595
• Control wind speed: 0.5 m/s (Opening height of sash at work: 400 mm)
• Material: Exterior/Steel (Powder Coating Finish), Interior/Chemical-Resistant/Heat-Resistant Board (Flame Retardant/Phenol Resin Laminated Board), Floor/PVC (Hard Vinyl Chloride Resin) 15 mm Thickness
• Lifting Sash: Tempered Glass (5 mm Thickness) Balance Weight Type with Opening Limiting Key (Height 400 mm) Double Sash
• Hydrant: Chemical-Resistant Coating Remote Control Type/1 Location Water Supply Connection Opening G1/2 (Female Screw Stopper)
• Drain Port: Drain Connection Port 25 A with Recessed Resin Sink and Drain Trap
• Outlets: 2 (100 VAC 15 A with 2 connected grounding)
• lighting: LED fluorescent
• Operation Switch: Touch Panel Lighting/Fan
• safety features: exhaust airflow display
• Exhaust Connection: PVC (Vinyl Chloride Resin) Volume Damper Phase Flanged
• Power connection: Terminal block with electrical box
• [Exhaust]
• Air volume (m3/min): 29
• Duct Connection Port: 200 x 600□ Square
• Required Duct Diameter (φmm): 350
• [Ancillary Facilities]
• Fluorescent Lamp (Pieces): 20 W x 4 Lamps Equivalent
• *Shipping, delivery, installation and assembly costs are required separately. Please contact us.
• *Exhaust fan is not included. Please contact us.
