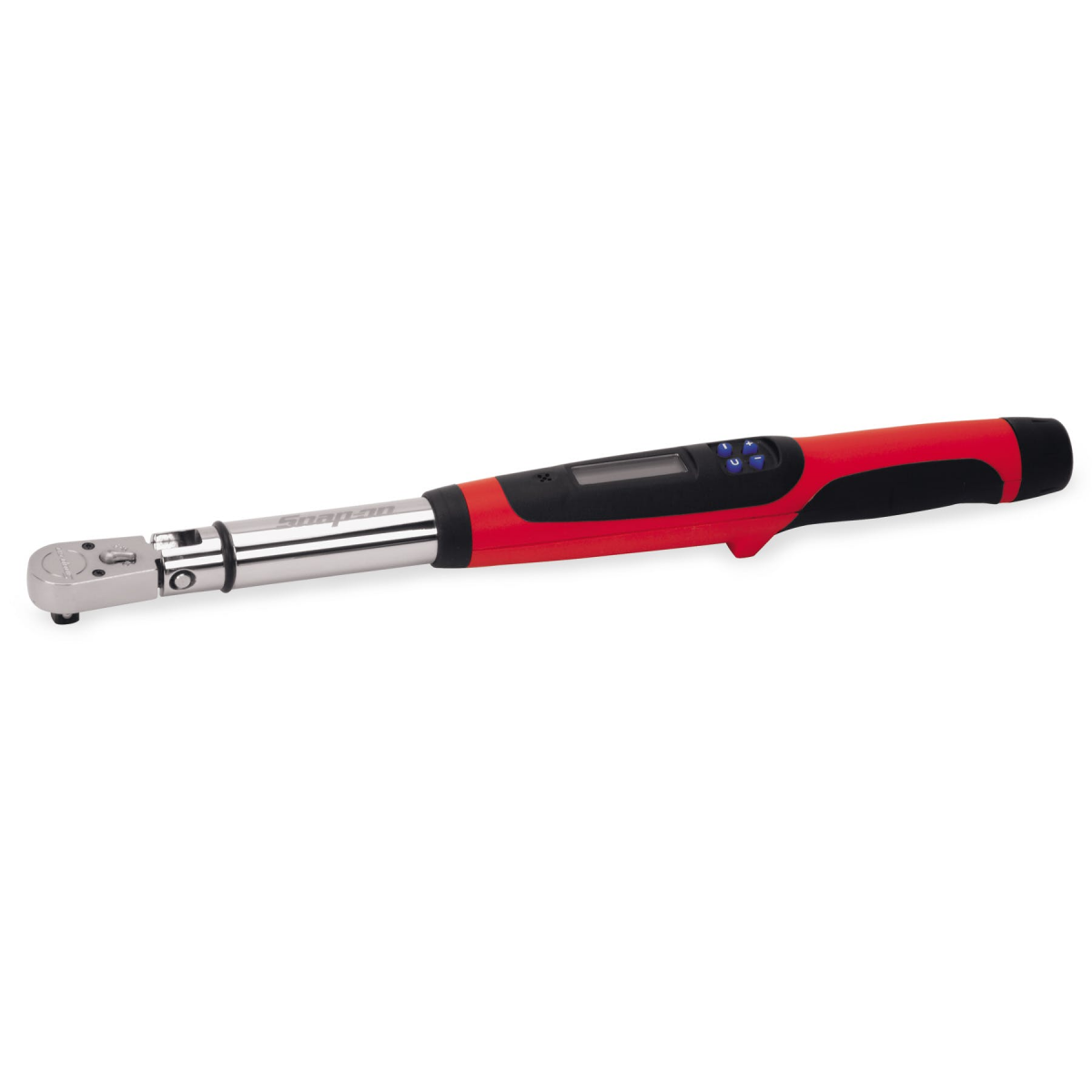

• Torque: 25-250 ft-lb
• Torque Accuracy: ±2% CW and ±3% CCW, 20-100% of full scale; ±4% CW and ±6% CCW, 10-19% of full scale; ±4% CW and ±6% CCW, 10-19% of full scale
• Manual preset and automatic track and peak hold modes
• Torque units conversion: N?·m, ft-lb, in-lb
• Audible (tone) and tactile (vibrating handle) preset alerts
• Display resolution: 0.1 ft-lb, 0.1 N?·m, 1 in-lb
• Each button has only one function (power on, preset increase, preset decrease, unit of measure select)
• Comfortable, non-slip grip
• Stand on handle bottom keeps tool from rolling off flat surface
• Sealed flex-head ratchets move ±15°
• Low battery indicator and auto shut off (after two minutes idle)
• Uses (3) AA lithium batteries (included)
• Includes storage case
| Range, ft-lb | 25–250 |
| Operating Temperature | 40–110 °F (5–42 °C) |
| Housing Color | Red |
| Range, in-lb | 300–3,000 |
| Gear Action | 4.5° |
| Country of Origin | USA |
| Storage Temperature | 0–122 °F (-20–50 °C) |
| Storage Case | PBTECH3 |
| Gear Teeth | 80 |
| Battery, Type (qty) | AA Alkaline (3) |
| Length, inches | 26-1/4 |
| Head Width, inches | 1-5/8 |
| Ratchet Service Kit | RKRS80A |
| Head Type | Sealed Fixed Ratchet |
| Square Drive, inches | 1/2 |
| Head Depth, inches | 3/4 |
| Humidity | Up to 90% Non-Condensing |
