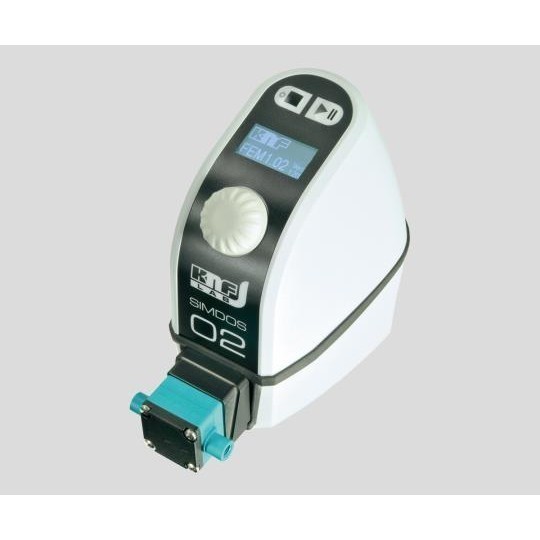

KNF Corrosion Resistant Diaphragm Quantitative Pump 20mL/Min　FEM1.02TT.18RC

Feature

• It is suitable to ultralow volume dripping. The user can set the flow rate digitally with a jog dial.
• The .18RC model also supports external controls （The 18S model supports manual controls only）.
• Low noise, less vibration, and self-contained. It can feed a gas or liquid.
• Maintenance-free, long service life, and less pulsation.

Specifications

• Flow rate: 0.03 - 20mL/min
• Flow rate accuracy: +/- 2%
• Reproducibility: +/- 1%
• Timer settings: 1s - 99h 59s
• Power supply: AC 100 - 240V, 50/60Hz
• Connection port size: UNF1/4-28, Inner diameter 4mm, outer diameter 6mm (with pre-shipment tube)
• Protection grade: IP65
• Size: 149 x 93 x 145mm
• Weight: 900g
• External control (18RC model): Analog 0 - 5V, 0 - 10V, 4 - 20mA, Flow rate control between 0 - 20mA
• Wetting part material (pump head/diaphragm/valve): PVDF/PTFE coating/FFKM
• Operation procedures: Manual/external control
• SIMDOS02
• Model number: FEM1.02TT.18RC

Package size

• Package size：180×205×275 mm 1.7 kg
